testing 1, 2, 3, 4, 5, IDK

Re: testing 1, 2, 3, 4, 5, IDK

I LIKE IT! NOT mine, just tried out a copy/paste to see IF Photobutt would let me see the pics!

Re: testing 1, 2, 3, 4, 5, IDK

YET another

Quote:

Originally Posted by siuvinson (Post 28986)

Re: testing 1, 2, 3, 4, 5, IDK

~original

Quote:

Originally Posted by SmallHaul (Post 10638)

http://i240.photobucket.com/albums/f...t.jpg~original

http://i240.photobucket.com/albums/f...2.jpg~original

http://i240.photobucket.com/albums/f...d.jpg~original

That's it for photos.

I have a vid I'll post up.

Re: testing 1, 2, 3, 4, 5, IDK

NOT quoted for pics,...........but quoted for the INFO

Quote:

Originally Posted by SmallHaul (Post 10697)

I was asked for more info on this build and thought I would just post it up here for everyone to benifit.

Here is a parts list of what I used to build it:

Nomadio Sensor radio
Tamiya gearbox
2 x slotcar motors (tamiya motors are 3.5 volts and fry quickly)
Saber tooth motor controller
5 volt 5 amp (continuous) bec
Hitec Digital HS-7955 TG lift servo
2 x Align Digital DS410M servos for bucket curl

Re: testing 1, 2, 3, 4, 5, IDK

~original

Quote:

Originally Posted by SmallHaul (Post 11096)

Thanks Ben.:)

Thank you very much. I really enjoy the engineering challenge of getting strength & power out of these little machines.

I improved the bucket curl mounts. The mounts on the prototype loader work fine but, they don't like nice.

This design has more rigidity and protects the servos from getting hit:

http://i240.photobucket.com/albums/f...d.jpg~original

http://i240.photobucket.com/albums/f...2.jpg~original

With the servo screw heads milled down it allows the two servos (sitting back to back) to fit nicely in the lift assembly and creates a rigid assembly.

http://i240.photobucket.com/albums/f...w.jpg~original

http://i240.photobucket.com/albums/f...2.jpg~original

I also made beefier aluminum drive hubs. I'll post up pics later when I get the 4-40 screws that I ordered for them.

Re: testing 1, 2, 3, 4, 5, IDK

http://i240.photobucket.com/albums/f...e.jpg~original

http://i240.photobucket.com/albums/f...4.jpg~original[/QUOTE]

quoted for INFO below here, NOT for images
Since I had to order more parts, I have a more accurate list:

Radio system
Tamiya twin motor gearbox
shims for tamiya gearbox assembly (you loose about 10 to 20% of gear contact on some of them if you leave them sloppy)
silicone to seal gearbox up (makes it last a very long time)
2 x slotcar motors (tamiya motors are 3.5 volts and fry quickly)
Aluminum stock to make drive hubs
4-40 screws & washers to secure gearbox to chassis
Saber tooth motor controller
5 volt 5 amp (continuous) bec
Hitec Digital HS-7955 TG lift servo
2 x hitec hs-5065mg digital servos for bucket curl
Hitec servo programmer
3" Y harness to join the 2 bucket curl servos
2 x 12" male servo leads to extend the bucket curl servos
heat shrink for all of the bucket curl servo wiring
piece of bicycle inner tube for lift lever cover (need to post pics)
4-40 rod and clevis for lift lever
lead weight
and 1 boat load of patience

Re: testing 1, 2, 3, 4, 5, IDK

http://i240.photobucket.com/albums/f...6.jpg~original[/QUOTE]

~original, it still works/

Re: testing 1, 2, 3, 4, 5, IDK

i like it

Quote:

Originally Posted by SmallHaul (Post 36495)

Joe, I can't find any pics of the beefier ones that I make now but, these are my prototype hubs that are on my prototype loader still. Just make the hub larger where the screws are so that you can make the 4-40 screws tight without worrying about striping out the aluminum threads. I also put flat spots on the axle where the screws hit.

http://i240.photobucket.com/albums/f...6.jpg~original

Re: testing 1, 2, 3, 4, 5, IDK

Quote:

Originally Posted by caterpillar (Post 57813)

Hi Joe, picture below. Hope it helps:
http://i1243.photobucket.com/albums/...6.jpg~original

Re: testing 1, 2, 3, 4, 5, IDK

more more

Quote:

Originally Posted by caterpillar (Post 58351)

Improvement made on the delta loader
http://i1243.photobucket.com/albums/...c.jpg~original

Planning to sell it

Re: testing 1, 2, 3, 4, 5, IDK

~original

Quote:

Originally Posted by motocrawler (Post 93553)

I have been really digging (no pun intended) doing these Bruder conversions, I am so impressed that with a little will and good equipment how functional these models can become. This time around I am doing a skid steer conversion...this was probably the hardest conversion I have done to date, mainly because of the size constraint of the model.

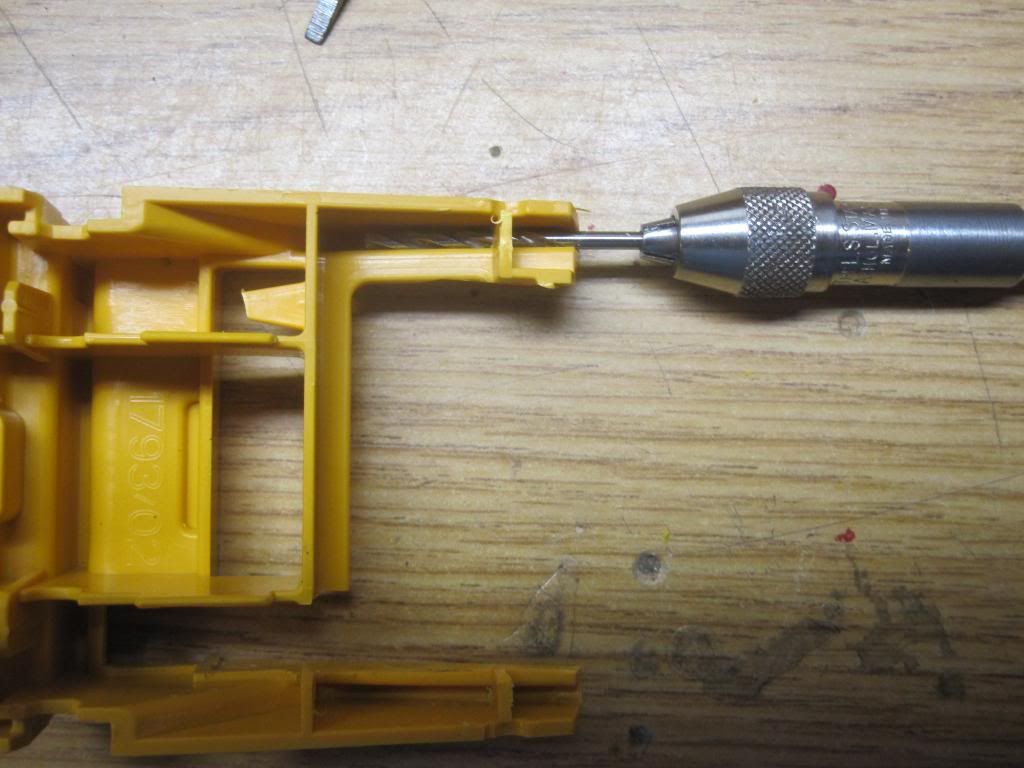

Step 1:

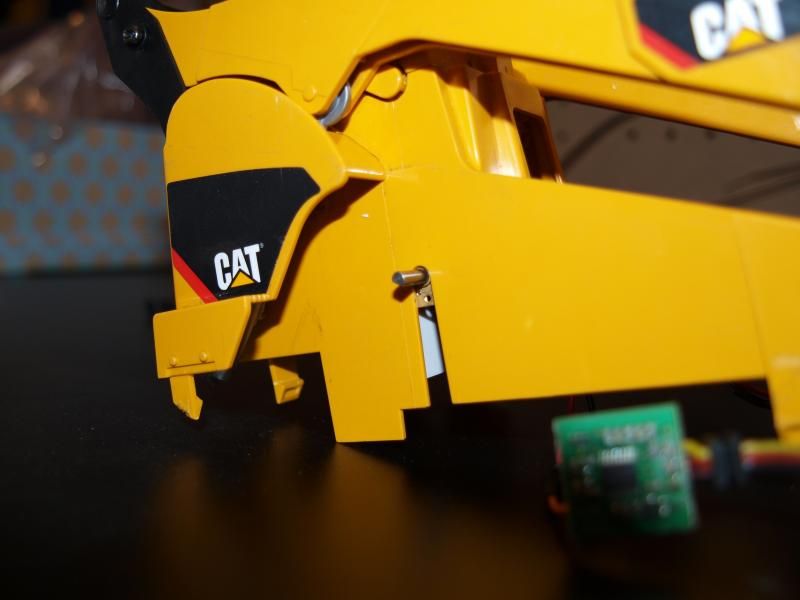

Cut out the back area for the the boom lift servo:

http://i1260.photobucket.com/albums/...8.jpg~original

http://i1260.photobucket.com/albums/...5.jpg~original

Step 2:
Make the bucket curl automation, this proved to be extremely difficult because of the various pivot points and size constraint. It was very hard to get a position where the bucket would curl all the way down and up:

http://i1260.photobucket.com/albums/...1.jpg~original

http://i1260.photobucket.com/albums/...9.jpg~original

Re: testing 1, 2, 3, 4, 5, IDK

~original

Quote:

Originally Posted by motocrawler (Post 93554)

From there I went to work on the propulsion system. I used 298:1 geared motors soldered to the circuit board of a hi-tec continuous rotation servo. I then used a v-tail mixer from rc planes to be able to mix the motors in order to have a tank drive system.

http://i1260.photobucket.com/albums/...1.jpg~original

http://i1260.photobucket.com/albums/...5.jpg~original

http://i1260.photobucket.com/albums/...8.jpg~original

I attached the drive wheels by use of a aluminum hub, I first filled the wheel with JB Weld so I had a way of mounting the hub.

http://i1260.photobucket.com/albums/...8.jpg~original

From there I made the sprockets using zip ties-this method has been documented and used on several other conversions online (credit to smallhaul for this).

http://i1260.photobucket.com/albums/...8.jpg~original

http://i1260.photobucket.com/albums/...9.jpg~original

http://i1260.photobucket.com/albums/...0.jpg~original

Re: testing 1, 2, 3, 4, 5, IDK

~original
MORE pics I wish to see, that Photobutt is holding ransom

Quote:

Originally Posted by motocrawler (Post 93555)

Here are some final finished pictures and a video will come shortly. So impressed with how steep an angle it can climb. A few things I need to change to are: a more powerful lift boom servo and change the existing ESC to a castle creations 6V BEC so I can get max rpm from the gear motors and max torque from the servos. But beyond that it is highly functioning and so much fun to operate!

http://i1260.photobucket.com/albums/...2.jpg~original

http://i1260.photobucket.com/albums/...3.jpg~original

Re: testing 1, 2, 3, 4, 5, IDK

~original

YEP, MORE MOre More

Quote:

Originally Posted by A.ash (Post 97731)

Gear box dirt protection
http://i886.photobucket.com/albums/a...8.jpg~original

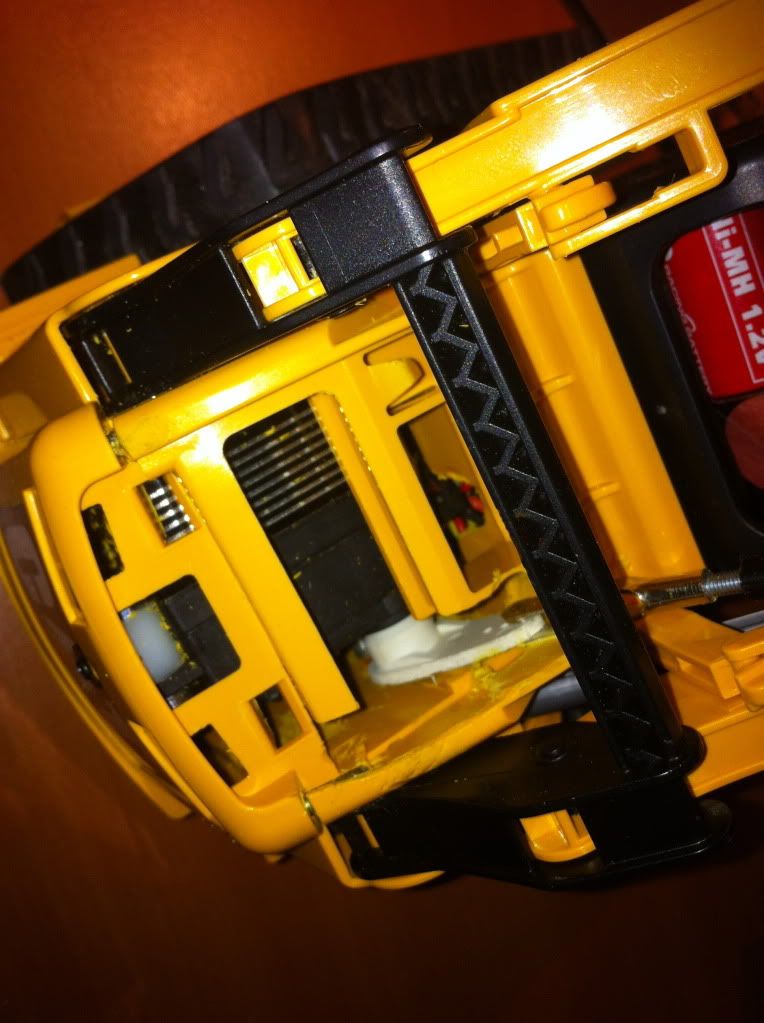

Lift servo installed (bottom view)
http://i886.photobucket.com/albums/a...0.jpg~original

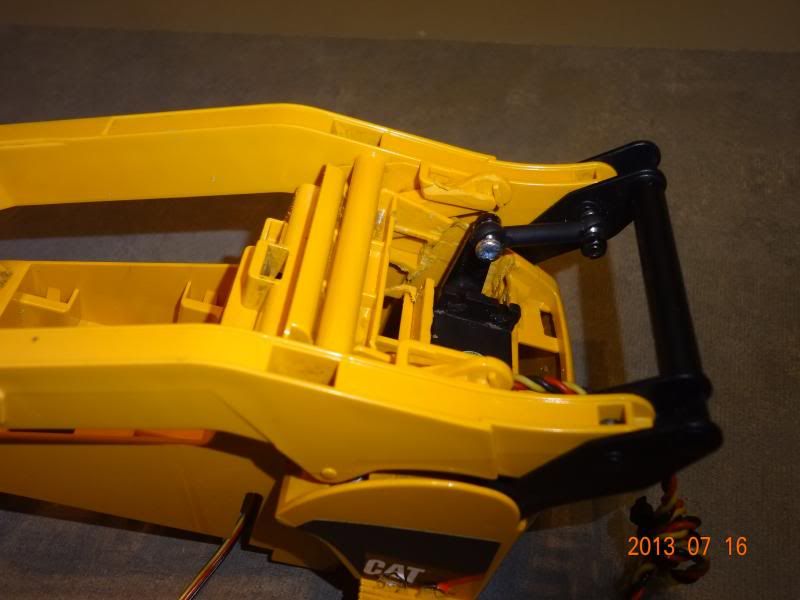

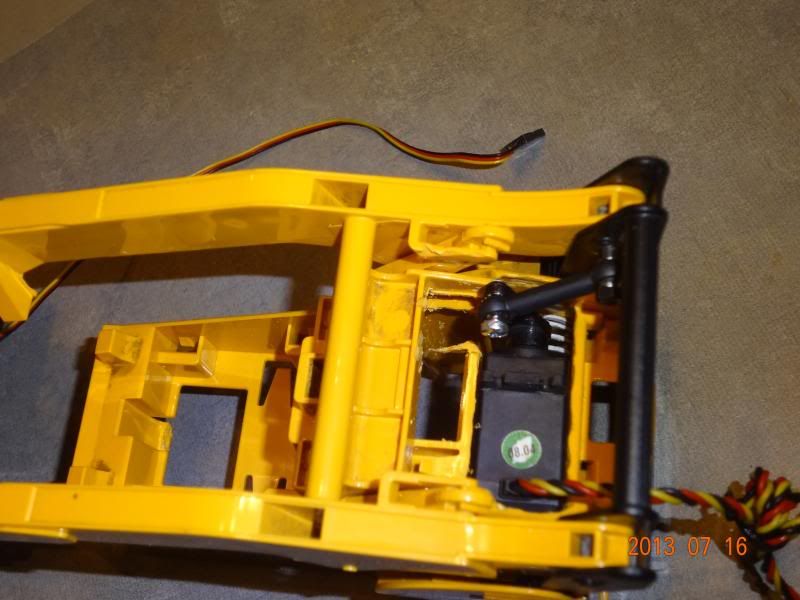

Curl servos mount build and installed
http://i886.photobucket.com/albums/a...d.jpg~original

Electronics (minus Rx) and lead ballast installed
http://i886.photobucket.com/albums/a...8.jpg~original

More to come

Re: testing 1, 2, 3, 4, 5, IDK

~original

MORE pb pics, b4 they go away again

Quote:

Originally Posted by Hofabooz (Post 150464)

Hi All

Trailer is ready load are available we are nearly ready for a running session at the truck club however how do we keep the loads on the truck bed.
Well after a bit of though and a look through the stock box som stainless steel bar was found and some mount printed to attach it under the trailer bed to provide attachment points. These are definitely a work in progress as i intend to revise and fit let side makers to them for MK2

http://i915.photobucket.com/albums/a...s.png~original

Temporary fixing with double sided tape for testing
http://i915.photobucket.com/albums/a...6.jpg~original

This now means loads and equipment can be secured for trans port to the job site and delivery at the club.

After discussion with a friend he advised on a design for a load strap see below thanks Fred :)

http://i915.photobucket.com/albums/a...p.png~original

Which enables the securing of the loads

http://i915.photobucket.com/albums/a...6.jpg~original

http://i915.photobucket.com/albums/a...5.jpg~original

http://i915.photobucket.com/albums/a...9.jpg~original

http://i915.photobucket.com/albums/a...1.jpg~original

RC Skidsteer ready to be transported to the jobs site
Please give feedback on the look of the load straps

Re: testing 1, 2, 3, 4, 5, IDK

~original

Quote:

Originally Posted by RobotArms24 (Post 128233)

Re: testing 1, 2, 3, 4, 5, IDK

~original

Quote:

Originally Posted by RobotArms24 (Post 128702)

I had last week off from work for a staycation, so I had some time to work on this finally. It is about 90% done now, needs a couple touch ups and some paint. Here is what I have done now:

I modified the transmitter and took out the spring mechanism on the one stick.
http://i587.photobucket.com/albums/s...7.jpg~original

I modified the bucket curl servo to get more travel. It runs about 160 degrees now. I soldered in two 2.2k resistors, one on each side of the potentiometer. I also moved the wire to the side of the case.
http://i587.photobucket.com/albums/s...2.jpg~original
http://i587.photobucket.com/albums/s...3.jpg~original

Video of servo travel. You can see where I marked the cardboard stock and the new travel.
https://youtu.be/ZPzTH3JKpzY

I was able to keep the engine cover by mounting the servo low, and cutting it out for the servo arm and linkage.
http://i587.photobucket.com/albums/s...4.jpg~original

I mounted the lift arm servo to the model with 1/4" aluminum blocks, they are drilled and tapped to mount to the servo, and on the side to mount to the model.

The bucket servo is mounted with SteinHDan's 3d printed mount I ordered from ShapeWays. I modified a small servo arm to fit on the bucket mount, then drill and tapped the arm for a 4-40 screw. I drilled the pivot point for the bucket so I could screw an m3 screw into the servo gear.
http://i587.photobucket.com/albums/s...9.jpg~original
http://i587.photobucket.com/albums/s...0.jpg~original
http://i587.photobucket.com/albums/s...5.jpg~original

I mounted the receiver under the cab and had to cut out a bit of the seat to get it to fit.

The BEC is mounted behind the cab in the main compartment above the motors.

I had a hard time finding a battery that would fit because I mounted the servo pretty low. I ended up with 2 x 450mah 2-cell li-po batteries, wired in parrallel.

http://i587.photobucket.com/albums/s...4.jpg~original

How it sits now, almost done.
http://i587.photobucket.com/albums/s...3.jpg~original

Video of it running:
https://youtu.be/Ye79_dS8ZME

It seems to be very stable, I don't think I will have to worry bout it tipping.

I may try to get a little bit more travel out of the lift servo, I feel like it is not lifting all the way up.

Thanks for looking.
-Kyle

Re: testing 1, 2, 3, 4, 5, IDK

~original

Quote:

Originally Posted by tracksntreadslou (Post 1888)

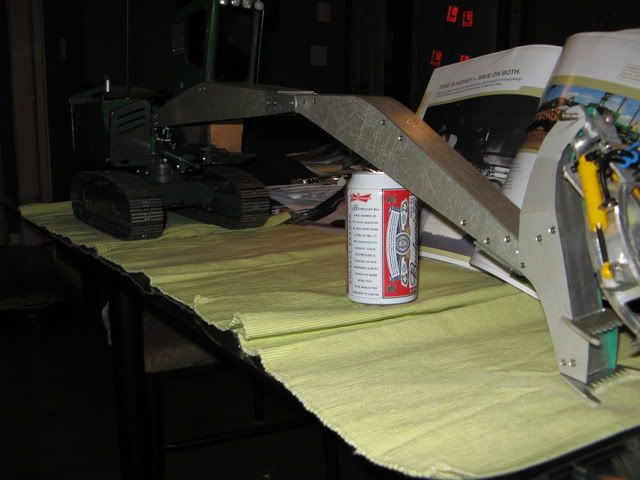

heres a few pics
http://i181.photobucket.com/albums/x...8.jpg~original
http://i181.photobucket.com/albums/x...5.jpg~original
http://i181.photobucket.com/albums/x...3.jpg~original
[IMG]http://i181.photobucket.com/albums/x63/tracksntreadslou/005-22.jpg~original/IMG]
http://i181.photobucket.com/albums/x...1.jpg~original

Re: testing 1, 2, 3, 4, 5, IDK

~original

Quote:

Originally Posted by tracksntreadslou (Post 12337)

Re: testing 1, 2, 3, 4, 5, IDK

~original

Quote:

Originally Posted by tracksntreadslou (Post 17627)

Thanks everyone ...Fred not quite sure the pixels ..10 i think ..its suposed to take pretty good still photos...I really need to practice on the log loader ...I was pretty rusty today at the train show ..Was having some radio issue as well ...Got a few pic but no vids ...Greg s hitachi worked flawlessly and he was loading railcars pretty fast with not too much coal spilt ...couple pics
http://i181.photobucket.com/albums/x...7.jpg~original
http://i181.photobucket.com/albums/x...7.jpg~original
back in the grind of build again ..something different this time ..Rob and Greg are looking at hiring a screening plant so heres a little preveiw

http://i181.photobucket.com/albums/x...A.jpg~original

http://i181.photobucket.com/albums/x...F.jpg~original
Thanks Mog ..Im just going to use a regular 1/16 strip of rubber and leaving the bruders as they are..well its functional and turning ok ..Using a 30 rpm servo city gear motor and that seems to be just right ..Rob tested how much current its drawing and it doing fine ..ran it for about an hour after fiddling with the tracking ..if you look closely i have adjustment on end rollers for both ends ...I use my little Poxom mini mill to make up the belt coupling and a short chunk of cable with a couple of wheel collers
http://i181.photobucket.com/albums/x...7.jpg~original
http://i181.photobucket.com/albums/x...B.jpg~original
http://i181.photobucket.com/albums/x...E.jpg~original
http://i181.photobucket.com/albums/x...7.jpg~original
is pretty much my first trummel build and im using a pretty heafty gear motor to turn it ..motor seems to be working fairly hard but we will see when its loaded full of dirt ..I remember my fathers big unit about a 7 foot diameter tube was really struggling when fairly full..We even twisted a drive shaft a time or three ..that little izuzu diesel was smoking pretty black ....Gravel mixed with water feeding sluice boxes ..Water probably helped keep the friction down ..wonder if turning dry gravel is a bit more difficult

this is the unit that inspired me to build it this way
http://i181.photobucket.com/albums/x...A.jpg~original
http://i181.photobucket.com/albums/x...A.jpg~original
http://i181.photobucket.com/albums/x...3.jpg~original

Re: testing 1, 2, 3, 4, 5, IDK

~original

[QUOTE=tracksntreadslou;92982]I also started on a ripper ..nice having a cnc to cut parts
http://i181.photobucket.com/albums/x...7.jpg~original
http://i181.photobucket.com/albums/x...6.jpg~original
http://i181.photobucket.com/albums/x...e.jpg~original
http://i181.photobucket.com/albums/x...c.jpg~original
http://i181.photobucket.com/albums/x...a.jpg~original
http://i181.photobucket.com/albums/x...9.jpg~original

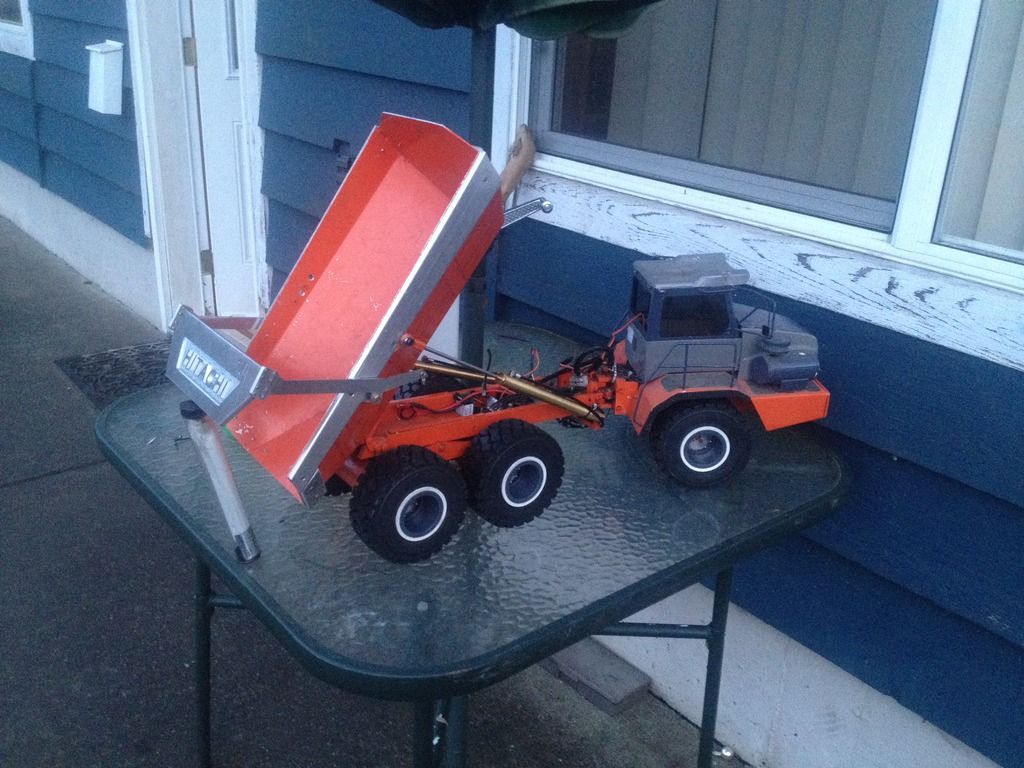

I found a new home for the new tires ..wasnt that happy with the mamoth tires on the hitachi ADT so on the workbench it went ...while it was there i started to do some mods ...I moved the dump cyclinders back almost 3/4 of an inch ..think i wont get any dirt hangging up in the box now ..wasnt much but it bugged me ..I also made up a tailgate ..still a few more parts to mill but it is coming along
http://i181.photobucket.com/albums/x...e.jpg~original
http://i181.photobucket.com/albums/x...7.jpg~original
http://i181.photobucket.com/albums/x...0.jpg~original
http://i181.photobucket.com/albums/x...d.jpg~original [QUOTE]

Re: testing 1, 2, 3, 4, 5, IDK

~original

Quote:

Originally Posted by motocrawler (Post 100568)

I've had the new Bruder D11 model sitting on the shelf for a while and finally I had enough time to tackle the conversion. I have to say that the level of detail on this model is quite impressive and the plastic is quite beefy...it's almost like Bruder knows these are going to be used for conversions.

I am using Pololu 99:1 geared motor as my drives and at 7.2v it should produce about 200 oz/in torque per motor.
First I made an axle to connect the motor to the drive wheel and hub.

http://i1260.photobucket.com/albums/...2.jpg~original

http://i1260.photobucket.com/albums/...3.jpg~original

http://i1260.photobucket.com/albums/...8.jpg~original

http://i1260.photobucket.com/albums/...7.jpg~original

http://i1260.photobucket.com/albums/...1.jpg~original

http://i1260.photobucket.com/albums/...7.jpg~original

http://i1260.photobucket.com/albums/...6.jpg~original

Quote:

Originally Posted by motocrawler (Post 100701)

So I got to working on the blade lift. I decided to use servos tucked into what would be the track tensioner.

http://i1260.photobucket.com/albums/...9.jpg~original

http://i1260.photobucket.com/albums/...0.jpg~original

I had to make a sliding mount for the servo horn to mount to. This was made with styrene and slides in the angle styrene brackets.

http://i1260.photobucket.com/albums/...8.jpg~original

http://i1260.photobucket.com/albums/...1.jpg~original

http://i1260.photobucket.com/albums/...2.jpg~original

http://i1260.photobucket.com/albums/...9.jpg~original

http://i1260.photobucket.com/albums/...0.jpg~original

Quote:

Originally Posted by motocrawler (Post 101068)

I didn't like how the tracks had no rollers/bogies so I cut out the faux rollers and made some rollers.

http://i1260.photobucket.com/albums/...2.jpg~original

http://i1260.photobucket.com/albums/...3.jpg~original

http://i1260.photobucket.com/albums/...4.jpg~original

http://i1260.photobucket.com/albums/...5.jpg~original

http://i1260.photobucket.com/albums/...7.jpg~original

Re: testing 1, 2, 3, 4, 5, IDK

~original

Quote:

Originally Posted by motocrawler (Post 101069)

I used a metal gear servo for the blade tilt

http://i1260.photobucket.com/albums/...8.jpg~original

http://i1260.photobucket.com/albums/...1.jpg~original

http://i1260.photobucket.com/albums/...0.jpg~original

From there I added some LED's

http://i1260.photobucket.com/albums/...2.jpg~original

http://i1260.photobucket.com/albums/...2.jpg~original

Quote:

Originally Posted by motocrawler (Post 101071)

Here is a shot of the guts, the semi circle pieces are wheel weights I had kicking around from 2.2" proline tires, they are zap strapped together and held down with heavy duty double sided tape. I need to put it on a scale but with the battery in it definitely has some weight behind it now.

http://i1260.photobucket.com/albums/...1.jpg~original

Quote:

Originally Posted by motocrawler (Post 101072)

So I got the dozer almost done. I decided not to automate the ripper as I have my doubts about the tracks holding up to the strain of ripping. I want to test it first and perhaps add some different grousers. I need to make the orange flashers and clean up some wiring and painting/weathering and it will be fully done. In the meantime here are some almost finished photos.

http://i1260.photobucket.com/albums/...5.jpg~original

http://i1260.photobucket.com/albums/...5.jpg~original

http://i1260.photobucket.com/albums/...1.jpg~original

http://i1260.photobucket.com/albums/...6.jpg~original

http://i1260.photobucket.com/albums/...4.jpg~original

Quote:

Originally Posted by motocrawler (Post 117353)

Re: testing 1, 2, 3, 4, 5, IDK

~original

Quote:

Originally Posted by JAKEBRAKE (Post 53995)

Then I decided it was time for another challenge, so on to the next project. http://i164.photobucket.com/albums/u...4.jpg~original http://i164.photobucket.com/albums/u...3.jpg~original

Re: testing 1, 2, 3, 4, 5, IDK
