Bruder D11


I've had the new Bruder D11 model sitting on the shelf for a while and finally I had enough time to tackle the conversion. I have to say that the level of detail on this model is quite impressive and the plastic is quite beefy...it's almost like Bruder knows these are going to be used for conversions.

I am using Pololu 99:1 geared motor as my drives and at 7.2v it should produce about 200 oz/in torque per motor.
First I made an axle to connect the motor to the drive wheel and hub.

http://i1260.photobucket.com/albums/...i/P1013102.jpg

http://i1260.photobucket.com/albums/...i/P1013103.jpg

http://i1260.photobucket.com/albums/...i/P1013108.jpg

http://i1260.photobucket.com/albums/...i/P1013107.jpg

http://i1260.photobucket.com/albums/...i/P1013111.jpg

http://i1260.photobucket.com/albums/...i/P1013117.jpg

http://i1260.photobucket.com/albums/...i/P1013116.jpg

Re: Bruder D11


Promising start!! Keep the pics coming:D Will be watching this conversion:)

Re: Bruder D11


Those motors will work but the speed to toque ratio is very high. Reducing the voltage down to 7.4 will cut the speed but also will cut the torque rating too........ something around 150:1 would be much more suitable......if you have access to those motor.....don't want to discourage you, but wanted to let you now before you buttoned everything up.

Re: Bruder D11


It's going to be a fast dozer! Those motors are 100rpm at 6v. I like how you have them set up though.

Re: Bruder D11


I agree the dozer will not be to scale speed but I had these motors kicking around so I figured I would use them. I can always adjust the EPA's on my radio to scale the speed back. Plus I have so much rc stuff from years of racing and building etc that I told myself that I will use what I have and not buy more stuff (let's see how long that lasts...:lol:). More pics and progress coming soon.

Re: Bruder D11


So I got to working on the blade lift. I decided to use servos tucked into what would be the track tensioner.

http://i1260.photobucket.com/albums/...i/P1013119.jpg

http://i1260.photobucket.com/albums/...i/P1013120.jpg

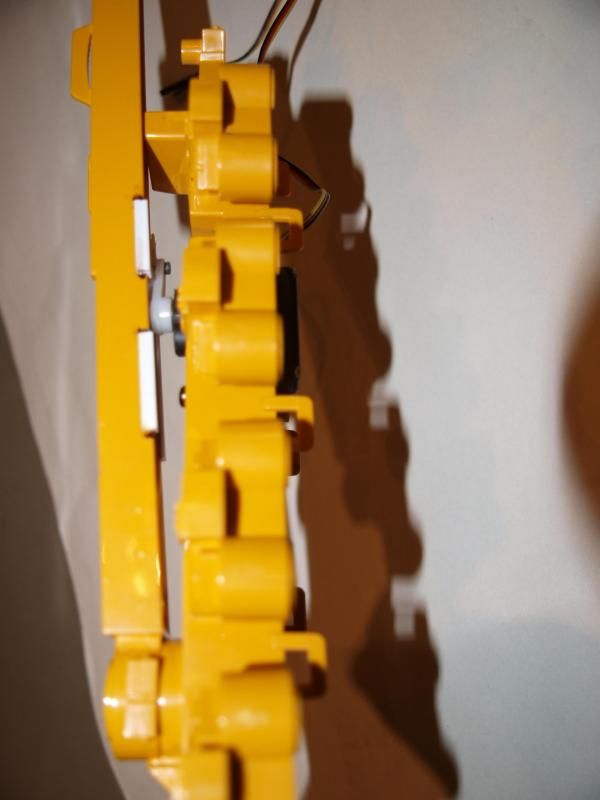

I had to make a sliding mount for the servo horn to mount to. This was made with styrene and slides in the angle styrene brackets.

http://i1260.photobucket.com/albums/...i/P1013128.jpg

http://i1260.photobucket.com/albums/...i/P1013131.jpg

http://i1260.photobucket.com/albums/...i/P1013132.jpg

http://i1260.photobucket.com/albums/...i/P1013129.jpg

http://i1260.photobucket.com/albums/...i/P1013130.jpg

Re: Bruder D11


Looking good.Have you tested the range of motion? Is the servo strong enough?

Re: Bruder D11


I thought about mounting a similar blade setup like that but ended up going with screwdrive type rams. Interested to see how that works out!

Re: Bruder D11


The range of motion is perfect, it travels exactly to the physical stops/limits on the model. I am using metal gear servos on each side so it is plenty strong it has an approximate combined torque of almost 100 oz/in.

Re: Bruder D11

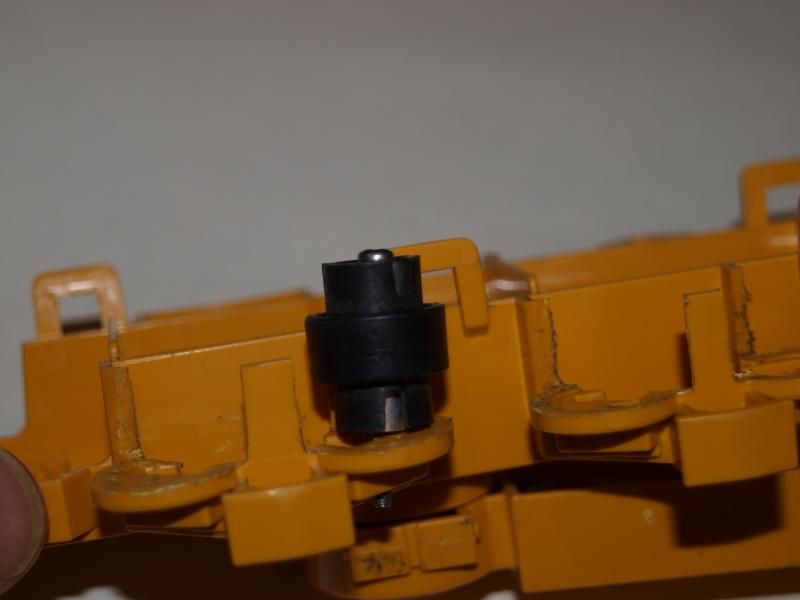

I didn't like how the tracks had no rollers/bogies so I cut out the faux rollers and made some rollers.

http://i1260.photobucket.com/albums/...i/P1013132.jpg

http://i1260.photobucket.com/albums/...i/P1013133.jpg

http://i1260.photobucket.com/albums/...i/P1013134.jpg

http://i1260.photobucket.com/albums/...i/P1013135.jpg

http://i1260.photobucket.com/albums/...i/P1013397.jpg

Re: Bruder D11


I used a metal gear servo for the blade tilt

http://i1260.photobucket.com/albums/...i/P1013388.jpg

http://i1260.photobucket.com/albums/...i/P1013391.jpg

http://i1260.photobucket.com/albums/...i/P1013390.jpg

From there I added some LED's

http://i1260.photobucket.com/albums/...i/P1013412.jpg

http://i1260.photobucket.com/albums/...i/P1013392.jpg

Re: Bruder D11


Here is a shot of the guts, the semi circle pieces are wheel weights I had kicking around from 2.2" proline tires, they are zap strapped together and held down with heavy duty double sided tape. I need to put it on a scale but with the battery in it definitely has some weight behind it now.

http://i1260.photobucket.com/albums/...i/P1013401.jpg

Re: Bruder D11


So I got the dozer almost done. I decided not to automate the ripper as I have my doubts about the tracks holding up to the strain of ripping. I want to test it first and perhaps add some different grousers. I need to make the orange flashers and clean up some wiring and painting/weathering and it will be fully done. In the meantime here are some almost finished photos.

http://i1260.photobucket.com/albums/...i/P1013395.jpg

http://i1260.photobucket.com/albums/...i/P1013415.jpg

http://i1260.photobucket.com/albums/...i/P1013411.jpg

http://i1260.photobucket.com/albums/...i/P1013416.jpg

http://i1260.photobucket.com/albums/...i/P1013414.jpg

Re: Bruder D11


Here is a test video of it. Just need the monsoon rains we are getting in Vancouver to subside so I can get some actual working footage of it in the dirt.

http://i1260.photobucket.com/albums/...102_0164-1.jpg

Re: Bruder D11


Looks great! Nice job. Can't wait to see it push! 👍

Re: Bruder D11


Nice job! I want to put some LEDs on mine but am clueless as to how and where to get them.

Re: Bruder D11


Thanks so much! Just need some decent weather so I can ge this thing out.

Most hobby stores carry LED light kits, I find the E flite kits work well to get the desired affect. But on these custom conversions I just end up making my own LED's.

Re: Bruder D11


Nice job,I wish we had rain instead of -25c

Re: Bruder D11


Great build! Any video of it moving dirt/rubber yet?

Re: Bruder D11


looks really great! well done!

Re: Bruder D11


Wow great conversion

Re: Bruder D11


This thread needs more dirt:p

Nice job, thanks for the photos.

Jim

Re: Bruder D11


Thanks Guys! I have been getting lots of usage out of this lately, I will try to make a video of it pushing dirt. I have to say I am always surprised at how well the plastic and the parts hold up.

Re: Bruder D11

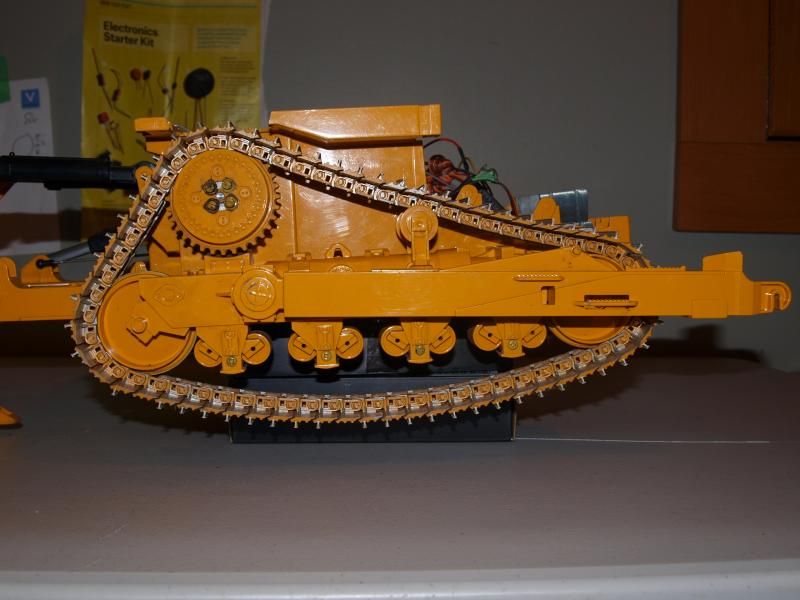

Well after a summer of heavy use the tracks on the D11 were stretching to the point of just sliding off the idlers.
http://i1260.photobucket.com/albums/...i/P1013446.jpg

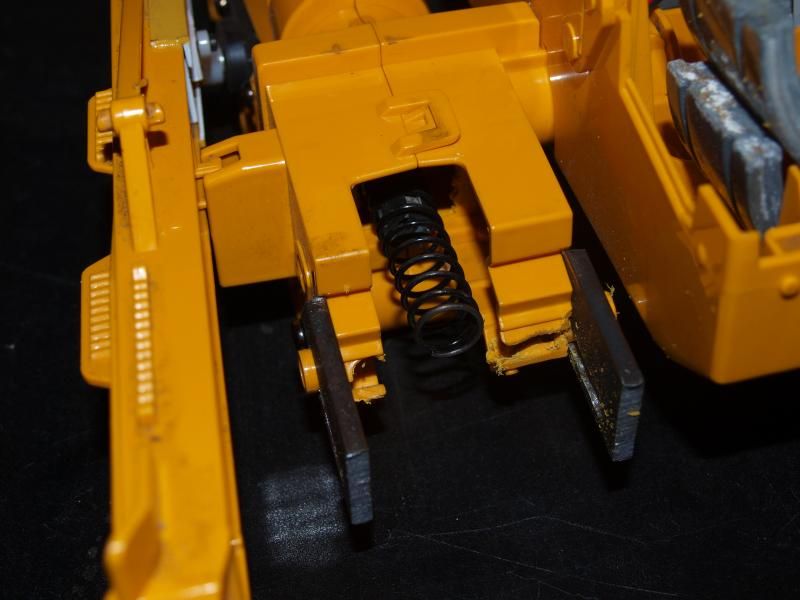

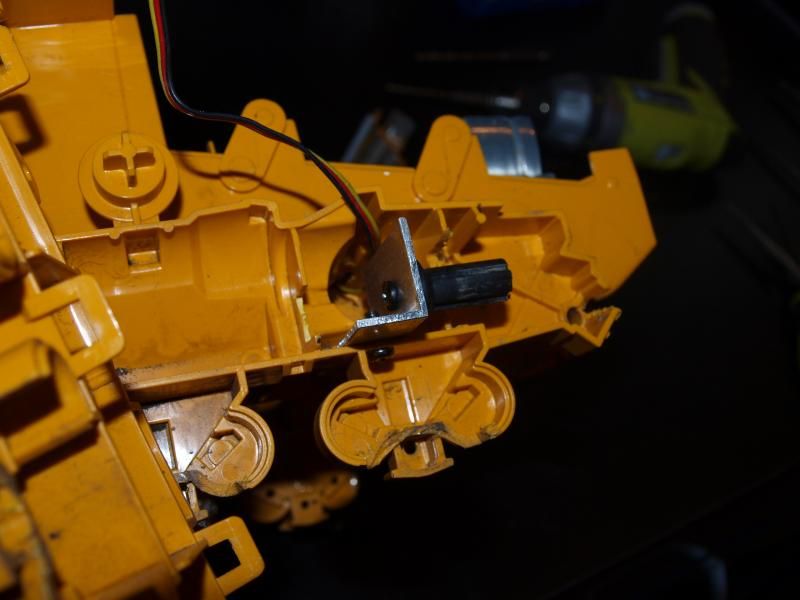

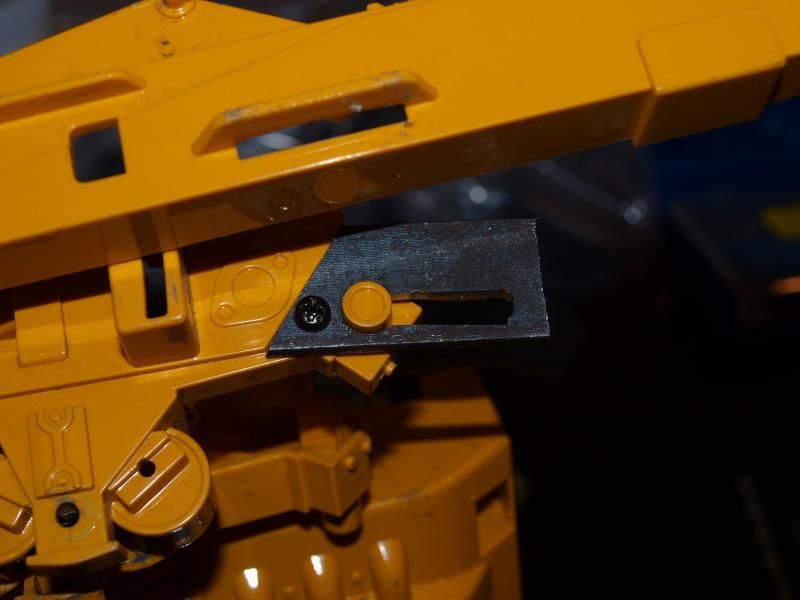

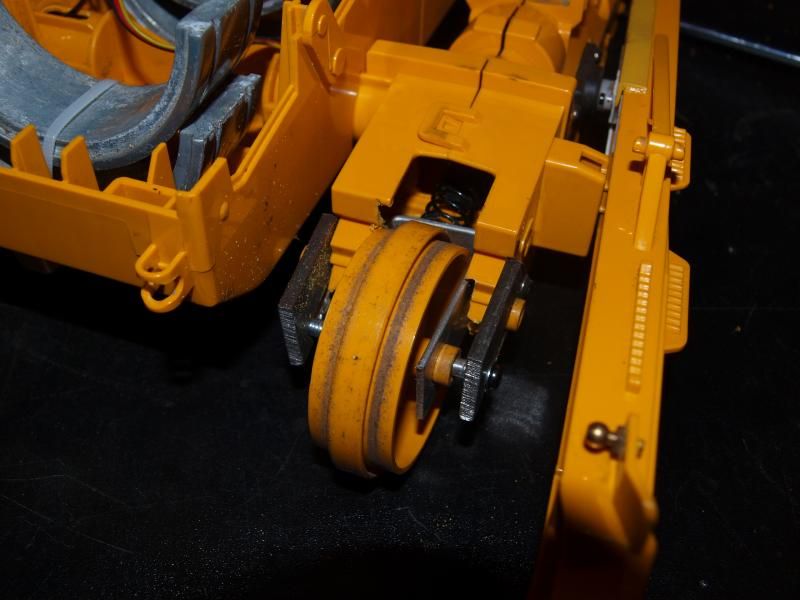

So I am going to try to make a track tensioner.

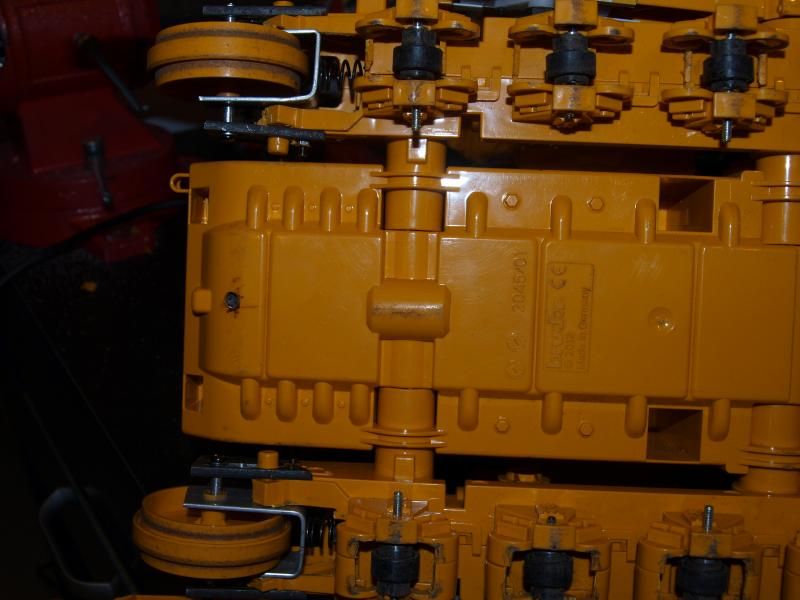

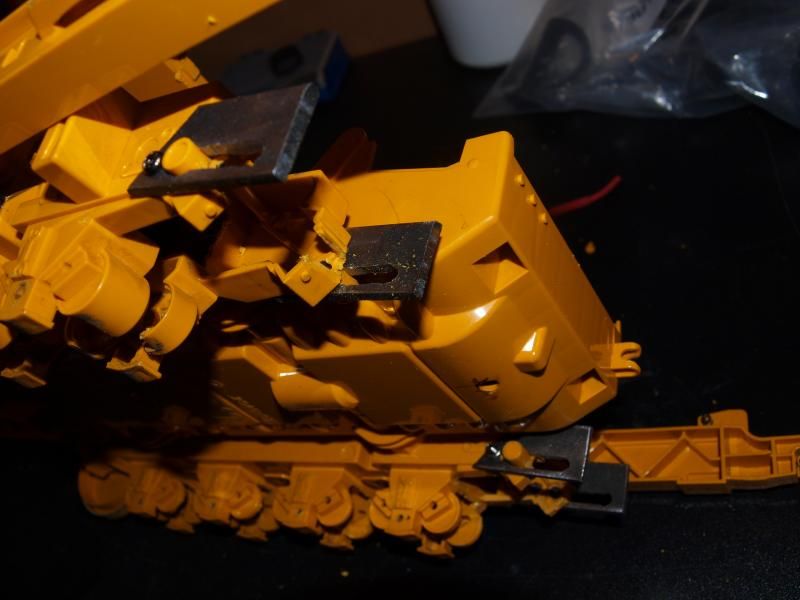

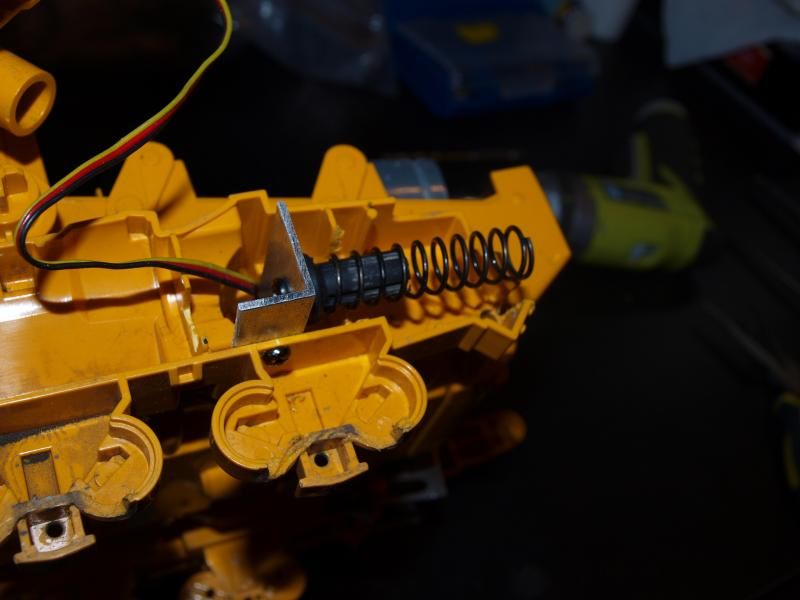

http://i1260.photobucket.com/albums/...i/P1013456.jpg

http://i1260.photobucket.com/albums/...i/P1013454.jpg

http://i1260.photobucket.com/albums/...i/P1013457.jpg

http://i1260.photobucket.com/albums/...i/P1013459.jpg

http://i1260.photobucket.com/albums/...i/P1013451.jpg

http://i1260.photobucket.com/albums/...i/P1013452.jpg

http://i1260.photobucket.com/albums/...i/P1013453.jpg

http://i1260.photobucket.com/albums/...i/P1013460.jpg

http://i1260.photobucket.com/albums/...i/P1013464.jpg

http://i1260.photobucket.com/albums/...i/P1013462.jpg

http://i1260.photobucket.com/albums/...i/P1013466.jpg

http://i1260.photobucket.com/albums/...i/P1013450.jpg

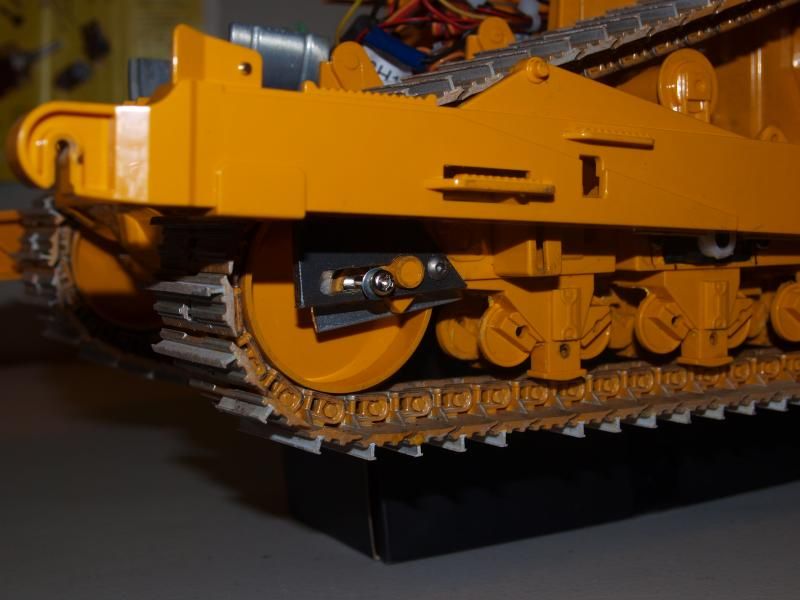

Here is the result...much better I think!

http://i1260.photobucket.com/albums/...i/P1013449.jpg

http://i1260.photobucket.com/albums/...i/P1013467.jpg

Re: Bruder D11


Beautiful job!!! Did you showed the part where you added the "teeth" to the tracks?

It looks really good. How did you get them on, glue?

Re: Bruder D11


Thank you. I didn't take photos of the track modification but all I did was take styrene I beam bar and cut to width and glued in place with Plasti-struct. Works pretty good for the soft dirt I am using this in, the odd piece snaps off but it is easy to re-glue on.

Re: Bruder D11


What size of styrene did you use on the tracks?

Re: Bruder D11


Wow this looks great, I'm working on similar lines to your and you have given me loads of ideas thank you

:bounce::bounce:

Re: Bruder D11


very nice!

Re: Bruder D11


nice

Re: Bruder D11


After the mods, how has it held up?

Re: Bruder D11


A GREAT idea
