skeeter 09-23-2017 10:16 PM
testing 1, 2, 3, 4, 5, IDK

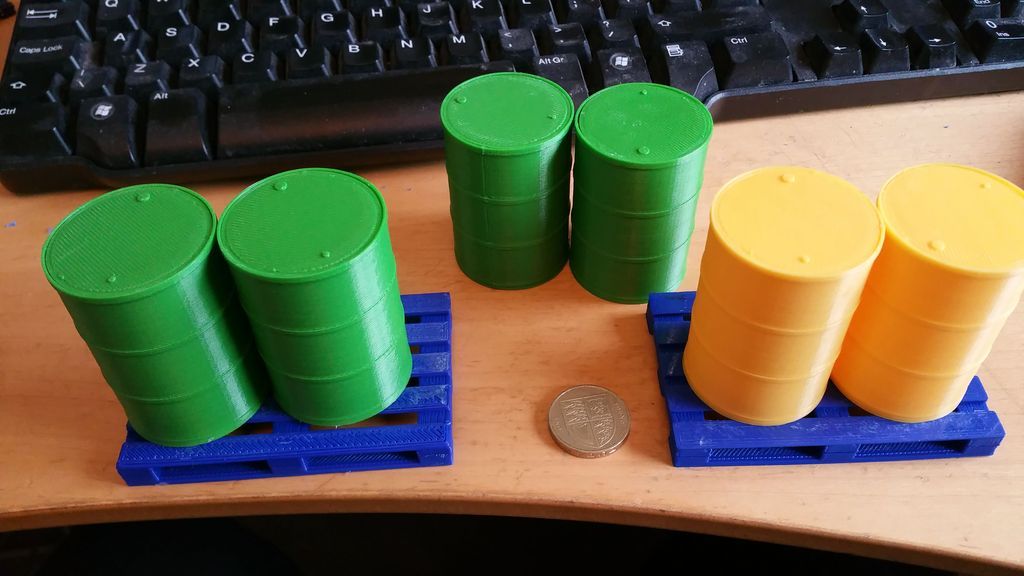

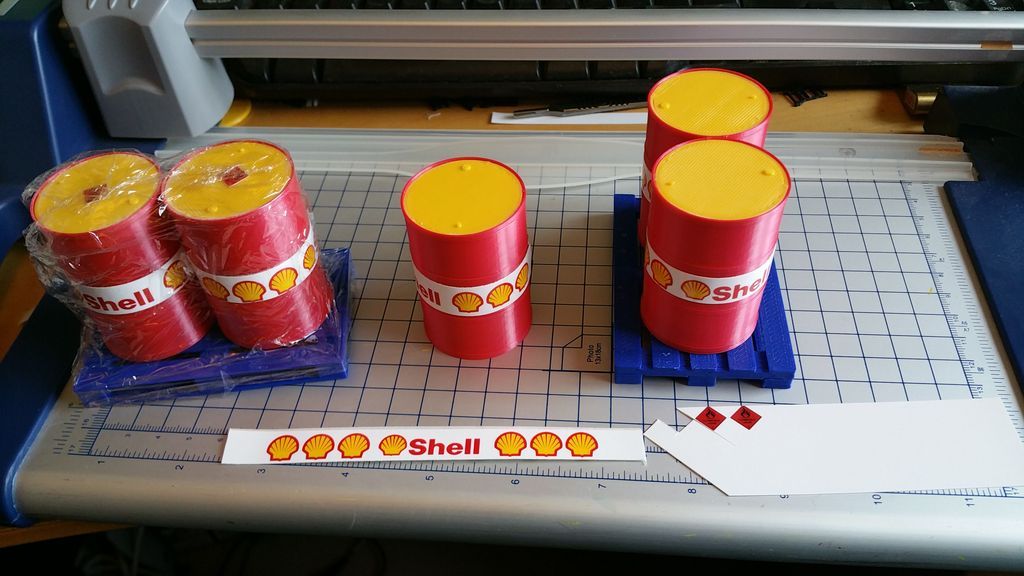

These Items are 3D printed?


http://i915.photobucket.com/albums/a...8.jpg~original

http://i915.photobucket.com/albums/a...8.jpg~original

http://i915.photobucket.com/albums/a...8.jpg~original

http://s915.photobucket.com/user/hof...html]~original

http://i915.photobucket.com/albums/a....jpeg~original

http://i915.photobucket.com/albums/a....jpeg~original
http://i915.photobucket.com/albums/a....jpeg~original
http://i915.photobucket.com/albums/a....jpeg~original
http://i915.photobucket.com/albums/a....jpeg~original

skeeter 09-23-2017 10:17 PM
Re: testing 1, 2, 3, 4, 5, IDK

I LIKE IT! NOT mine, just tried out a copy/paste to see IF Photobutt would let me see the pics!

skeeter 09-23-2017 10:23 PM
Re: testing 1, 2, 3, 4, 5, IDK

http://i915.photobucket.com/albums/a...9.jpg~original

http://i915.photobucket.com/albums/a...5.jpg~original

[IMGhttp://i915.photobucket.com/albums/ac352/hofabooz/Leyland%20Truck%20Club/IMG-20161112-WA0027.jpeg~original[/IMG]

http://i915.photobucket.com/albums/a....jpeg~original

http://i915.photobucket.com/albums/a....jpeg~original

http://i915.photobucket.com/albums/a....jpeg~original

http://i915.photobucket.com/albums/a....jpeg~original

http://i915.photobucket.com/albums/a....jpeg~original

http://i915.photobucket.com/albums/a....jpeg~original

http://i915.photobucket.com/albums/a....jpeg~original

http://i915.photobucket.com/albums/a...0.jpg~original

http://i915.photobucket.com/albums/a....jpeg~original

http://i915.photobucket.com/albums/a....jpeg~original

http://i915.photobucket.com/albums/a....jpeg~original[/QUOTE]

Will this work AGAIN?

skeeter 09-23-2017 10:58 PM
Re: testing 1, 2, 3, 4, 5, IDK

YET another

Quote:
Originally Posted by siuvinson (Post 28986)
I've had this done for a few months and have posted it on other boards but never this one...so here it is! (LOTS of credit goes to SmallHaul...the drive and lift design was pretty much copied from his conversion :D)

Original "toy" form:
http://mbeans.com/images/items/work-...r.jpg~original

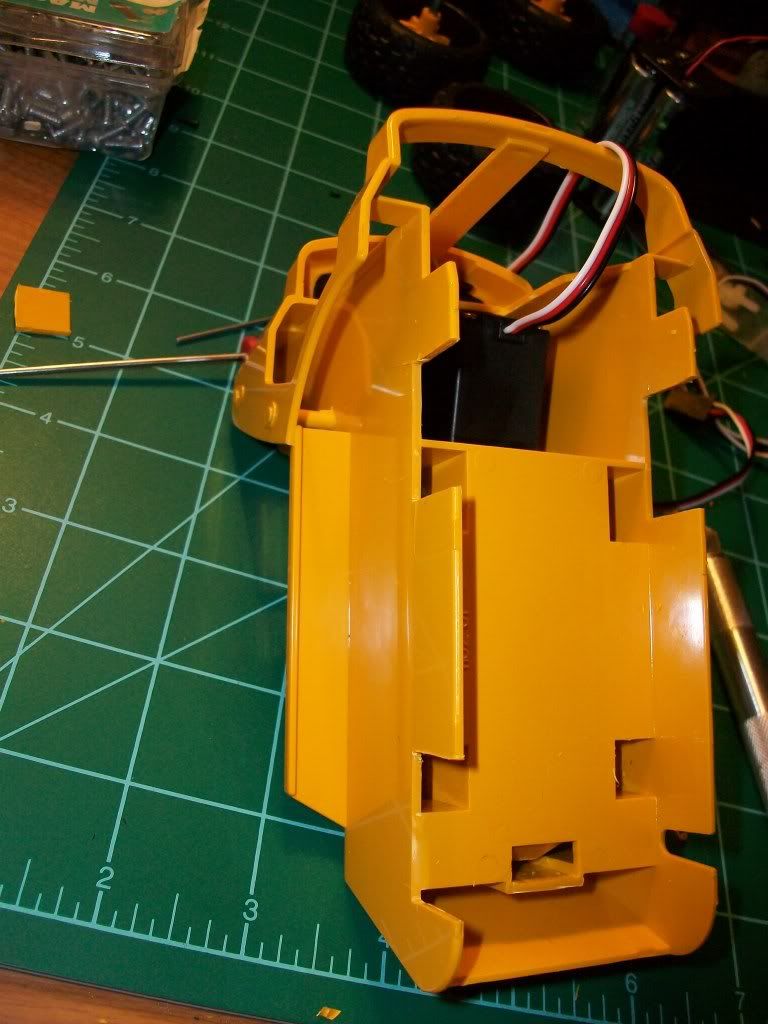

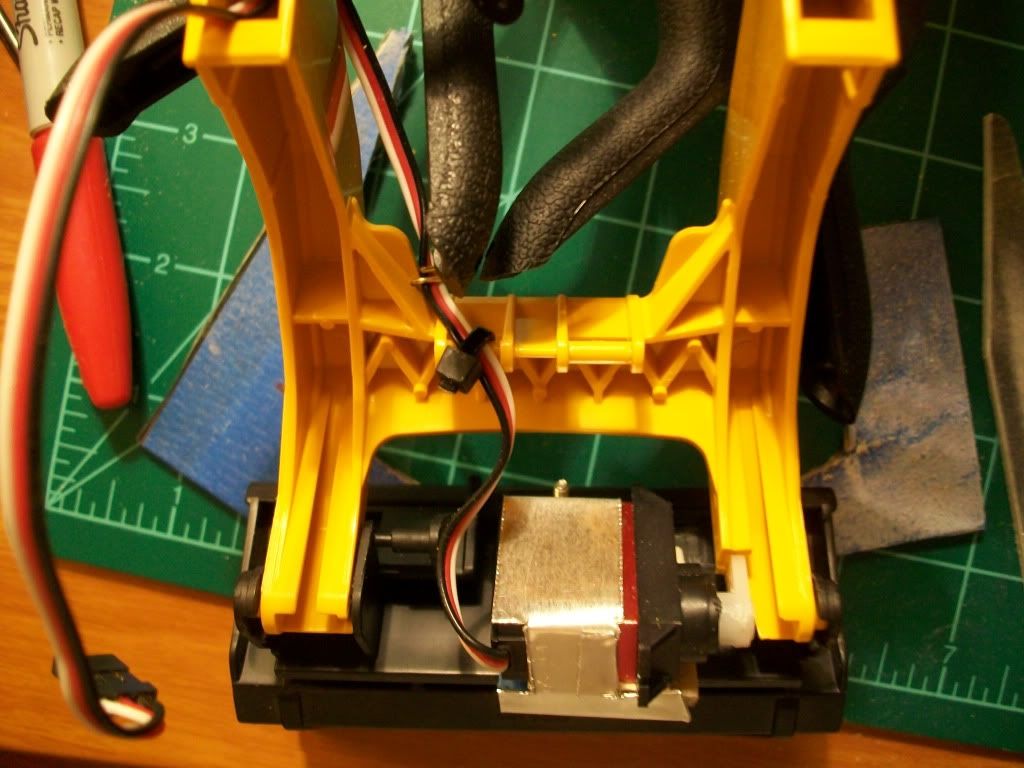

hacking it up to make way for drive/lift servos:
http://i1108.photobucket.com/albums/...6.jpg~original
http://i1108.photobucket.com/albums/...5.jpg~original

bucket tilt servos:
http://i1108.photobucket.com/albums/...0.jpg~original

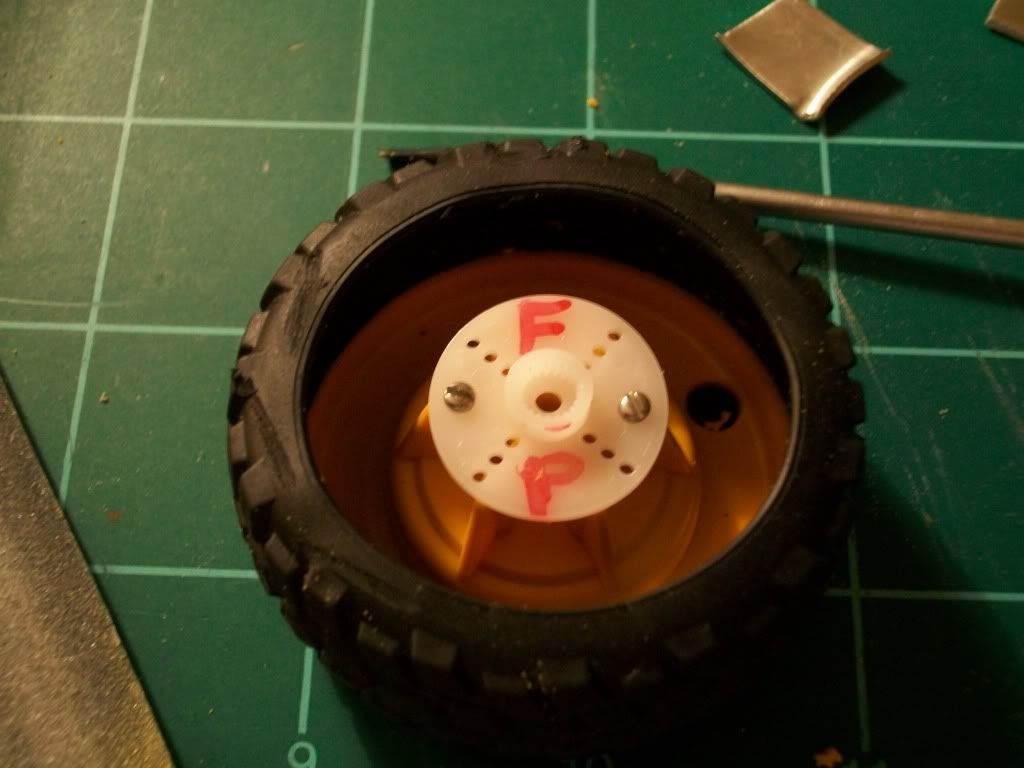

mounting wheels:
http://i1108.photobucket.com/albums/...2.jpg~original

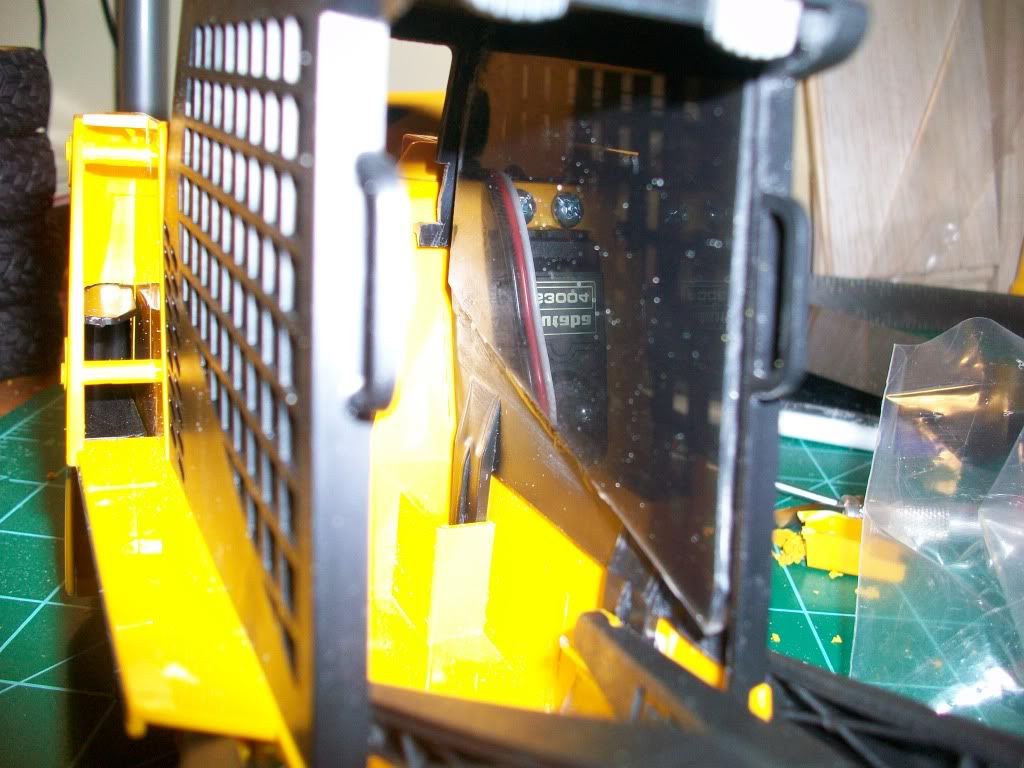

tinted plexiglass cab windows:
http://i1108.photobucket.com/albums/...3.jpg~original

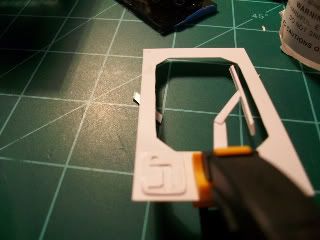

cab door:
http://i1108.photobucket.com/albums/...0.jpg~original
http://i1108.photobucket.com/albums/...3.jpg~original
http://i1108.photobucket.com/albums/...0.jpg~original

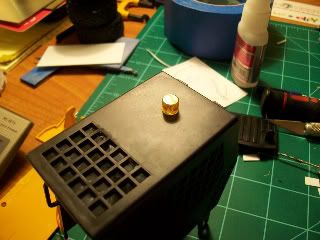

amber strobe on the roof:
http://i1108.photobucket.com/albums/...8.jpg~original

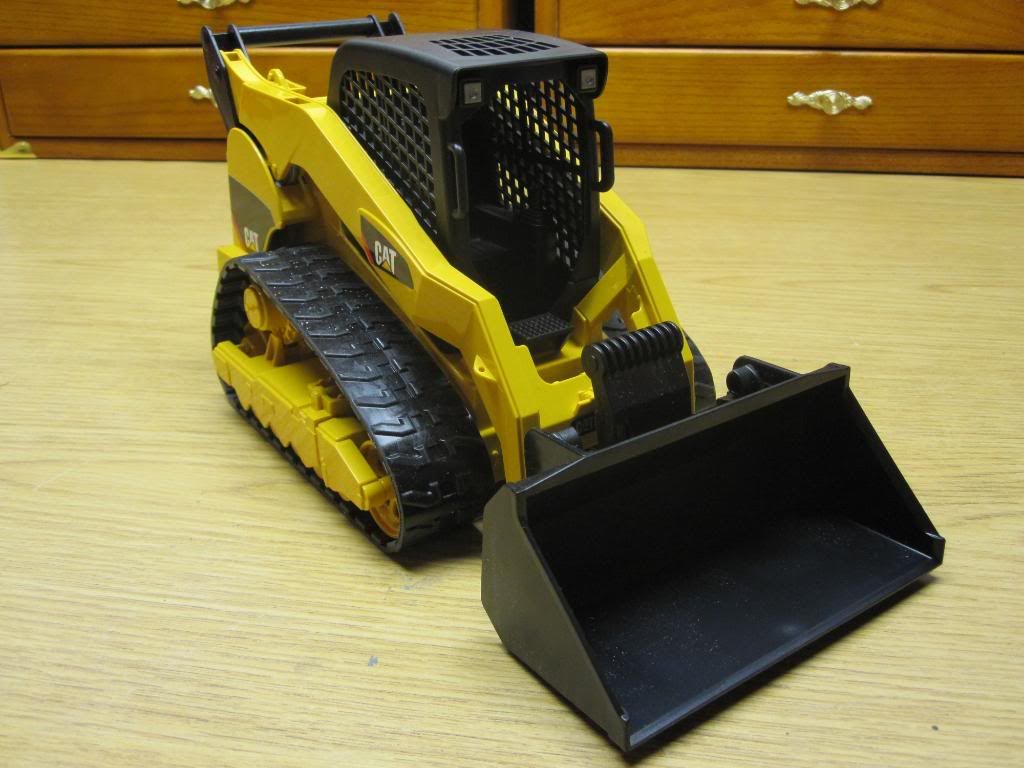

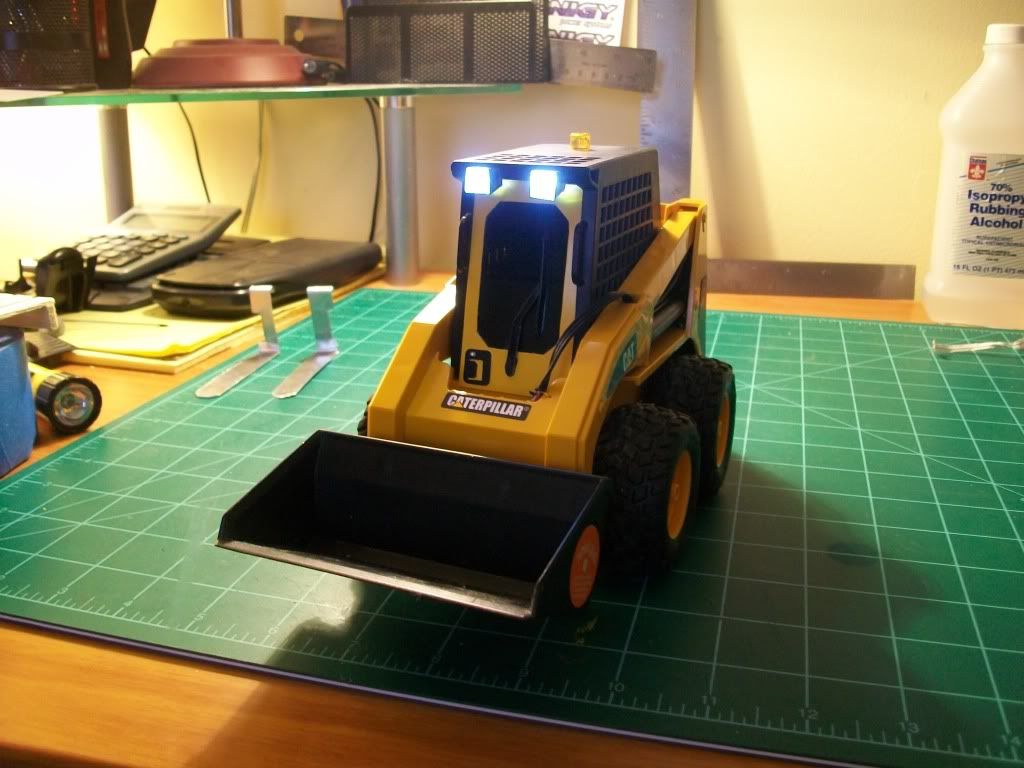

finished product:
http://i1108.photobucket.com/albums/...3.jpg~original
http://i1108.photobucket.com/albums/...3.jpg~original

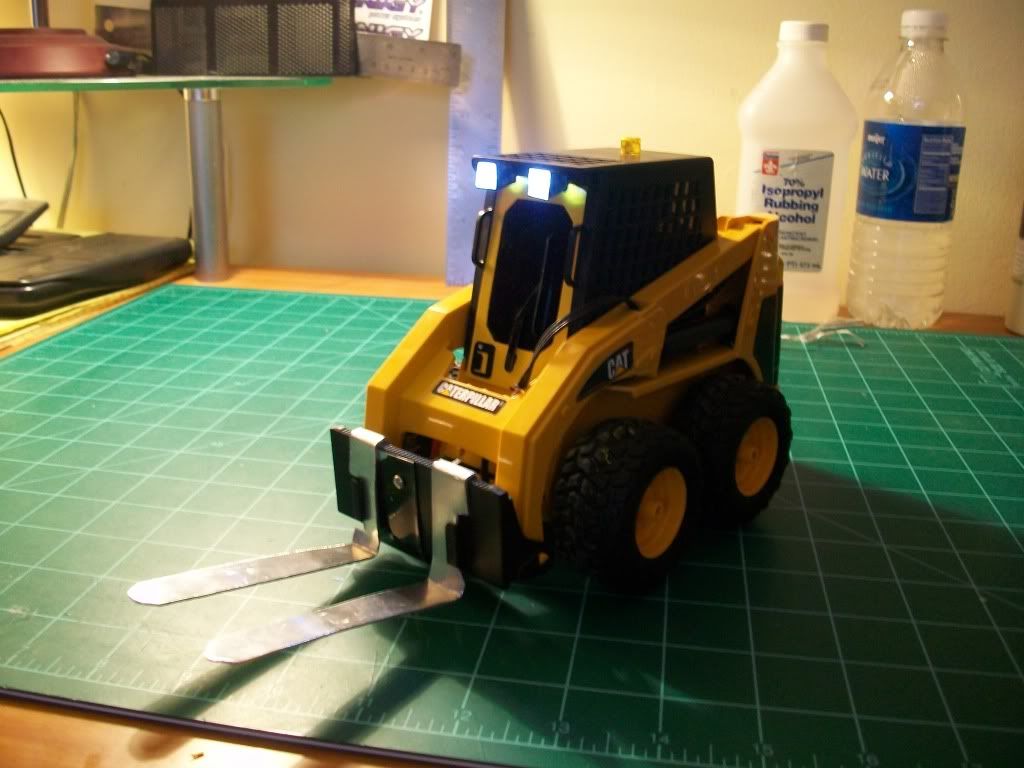

forks?
http://i1108.photobucket.com/albums/...3.jpg~original

skeeter 09-23-2017 11:08 PM
Re: testing 1, 2, 3, 4, 5, IDK

~original MORE

skeeter 09-24-2017 12:31 AM
Re: testing 1, 2, 3, 4, 5, IDK

~original

skeeter 09-24-2017 12:34 AM
Re: testing 1, 2, 3, 4, 5, IDK

~original

skeeter 09-24-2017 12:37 AM
Re: testing 1, 2, 3, 4, 5, IDK

~original

skeeter 09-24-2017 12:39 AM
Re: testing 1, 2, 3, 4, 5, IDK

~original

skeeter 09-24-2017 12:43 AM
Re: testing 1, 2, 3, 4, 5, IDK

NOT quoted for pics,...........but quoted for the INFO

Quote:
Originally Posted by SmallHaul (Post 10697)
I was asked for more info on this build and thought I would just post it up here for everyone to benifit.

Here is a parts list of what I used to build it:


Nomadio Sensor radio
Tamiya gearbox
2 x slotcar motors (tamiya motors are 3.5 volts and fry quickly)
Saber tooth motor controller
5 volt 5 amp (continuous) bec
Hitec Digital HS-7955 TG lift servo
2 x Align Digital DS410M servos for bucket curl

skeeter 09-24-2017 12:47 AM
Re: testing 1, 2, 3, 4, 5, IDK

~original

Quote:
Originally Posted by SmallHaul (Post 11096)
Thanks Ben.:)



Thank you very much. I really enjoy the engineering challenge of getting strength & power out of these little machines.

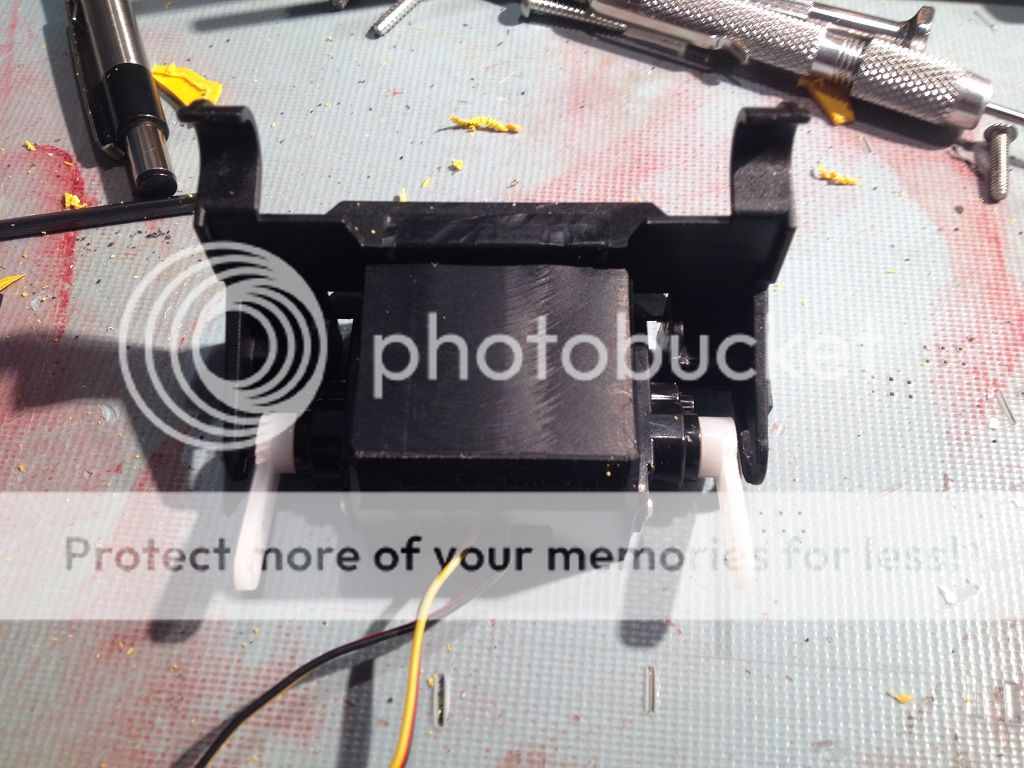

I improved the bucket curl mounts. The mounts on the prototype loader work fine but, they don't like nice.

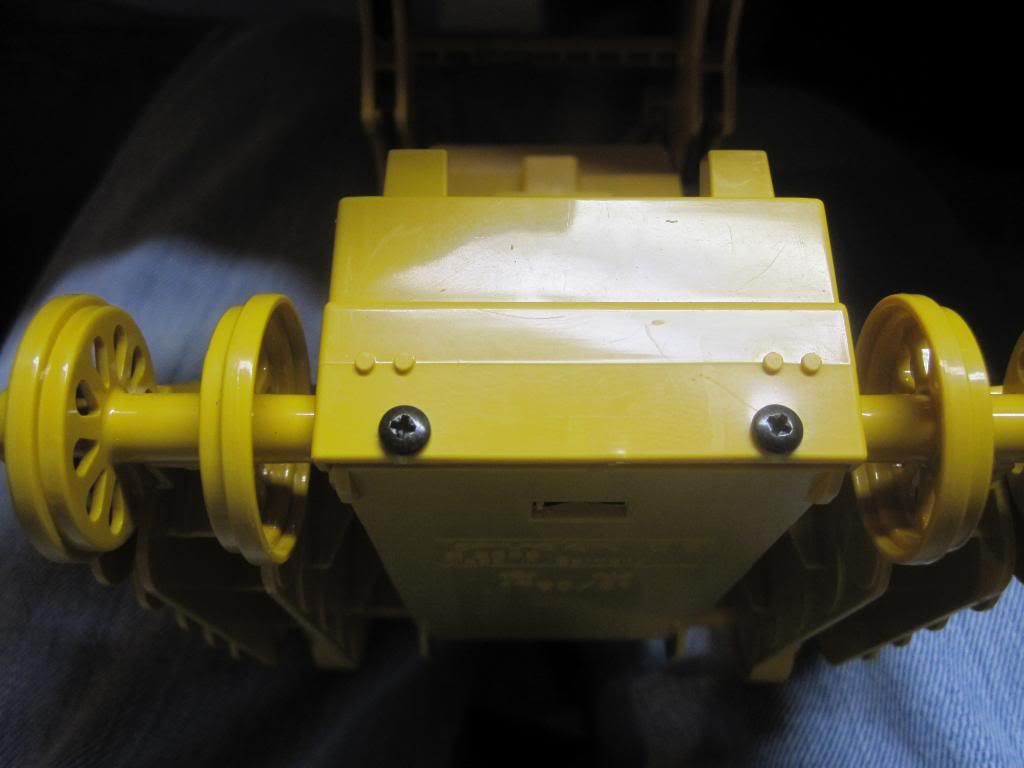

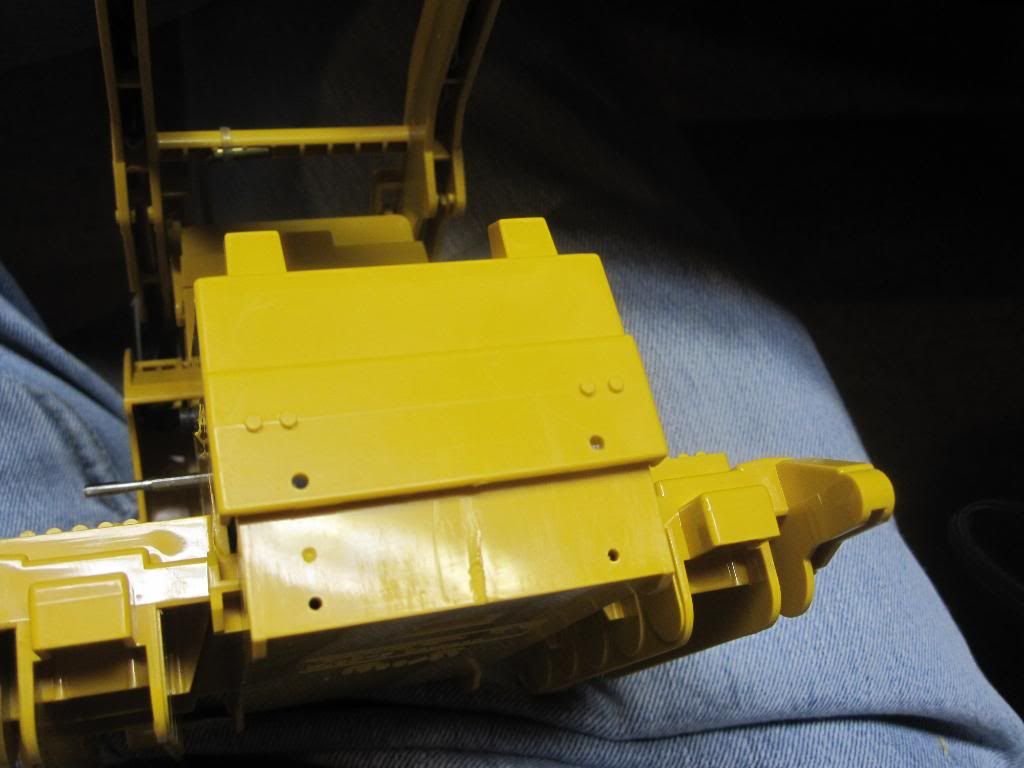

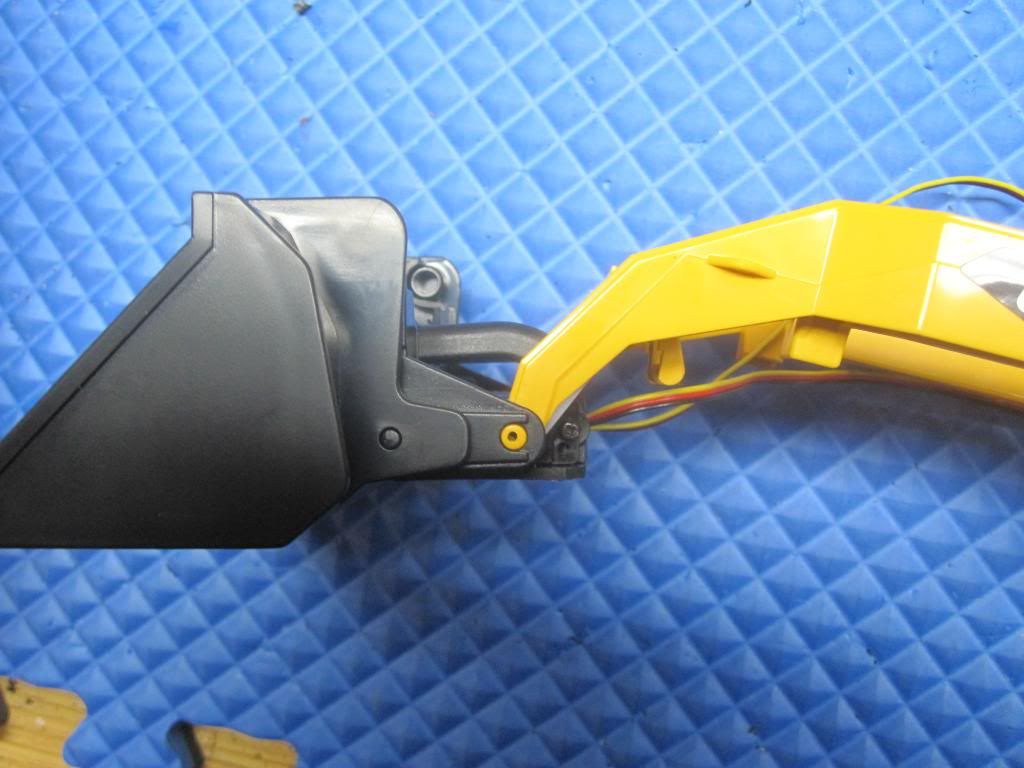

This design has more rigidity and protects the servos from getting hit:

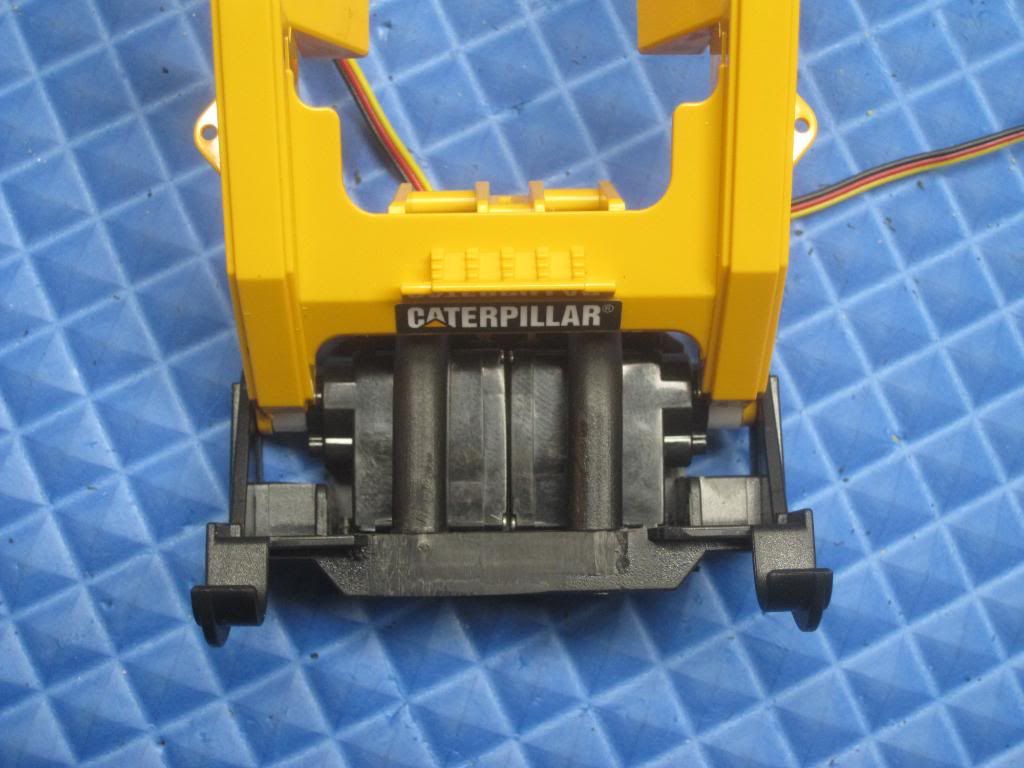

http://i240.photobucket.com/albums/f...d.jpg~original

http://i240.photobucket.com/albums/f...2.jpg~original

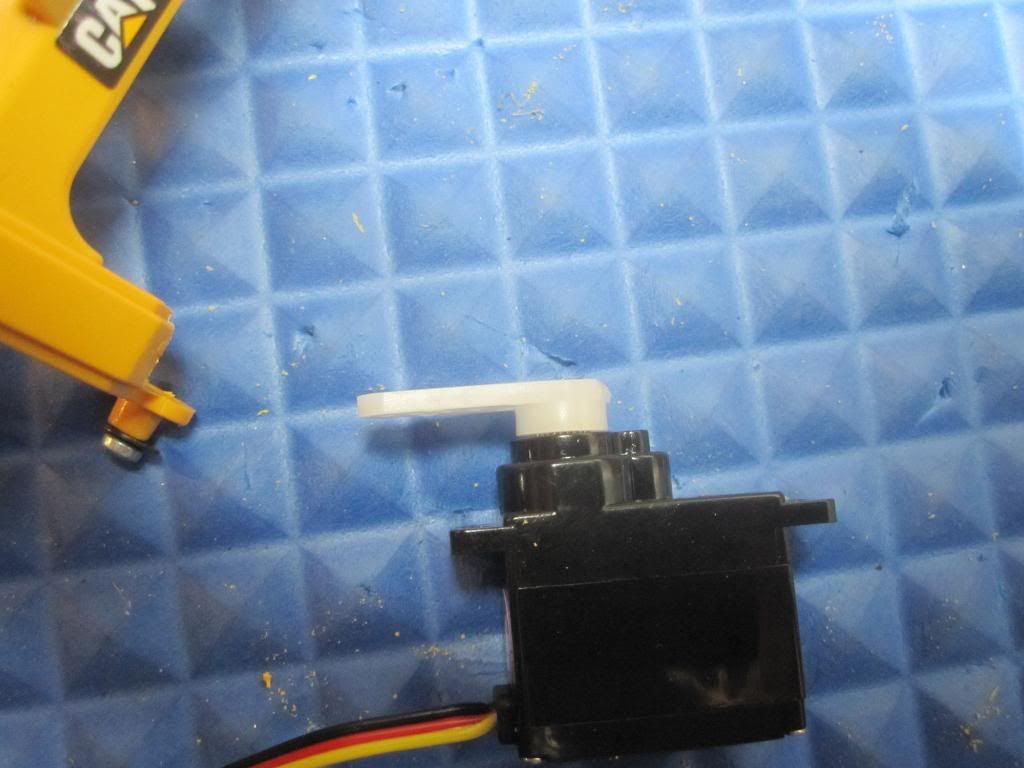

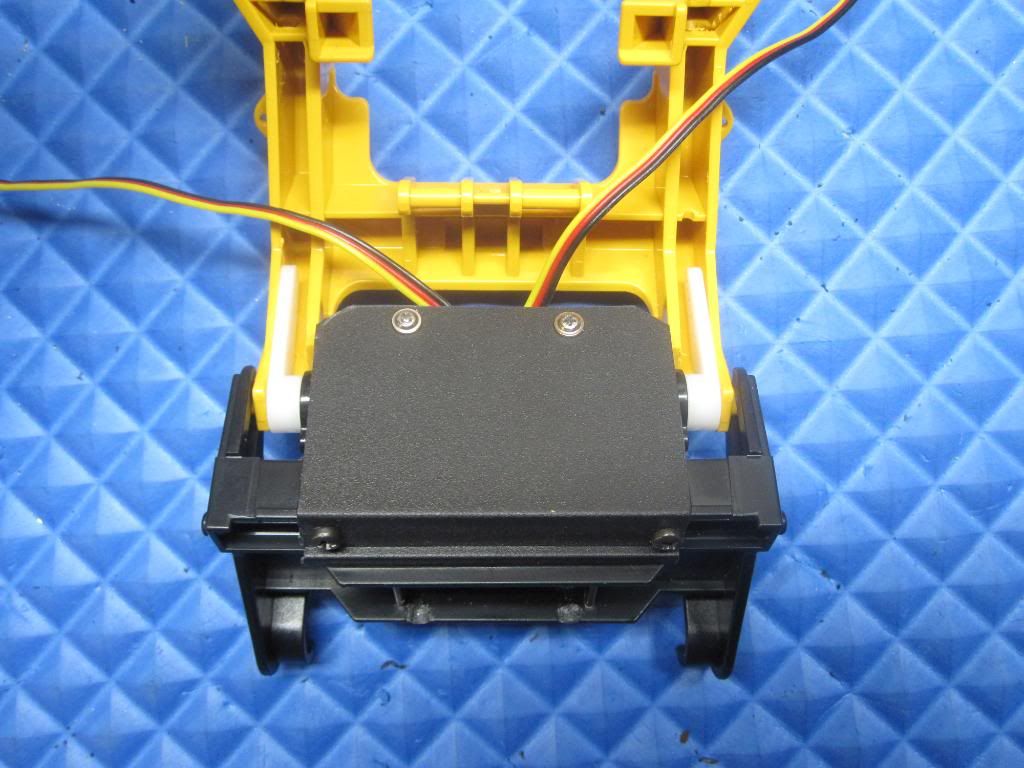

With the servo screw heads milled down it allows the two servos (sitting back to back) to fit nicely in the lift assembly and creates a rigid assembly.

http://i240.photobucket.com/albums/f...w.jpg~original

http://i240.photobucket.com/albums/f...2.jpg~original

I also made beefier aluminum drive hubs. I'll post up pics later when I get the 4-40 screws that I ordered for them.

skeeter 09-24-2017 12:53 AM
Re: testing 1, 2, 3, 4, 5, IDK

http://i240.photobucket.com/albums/f...e.jpg~original

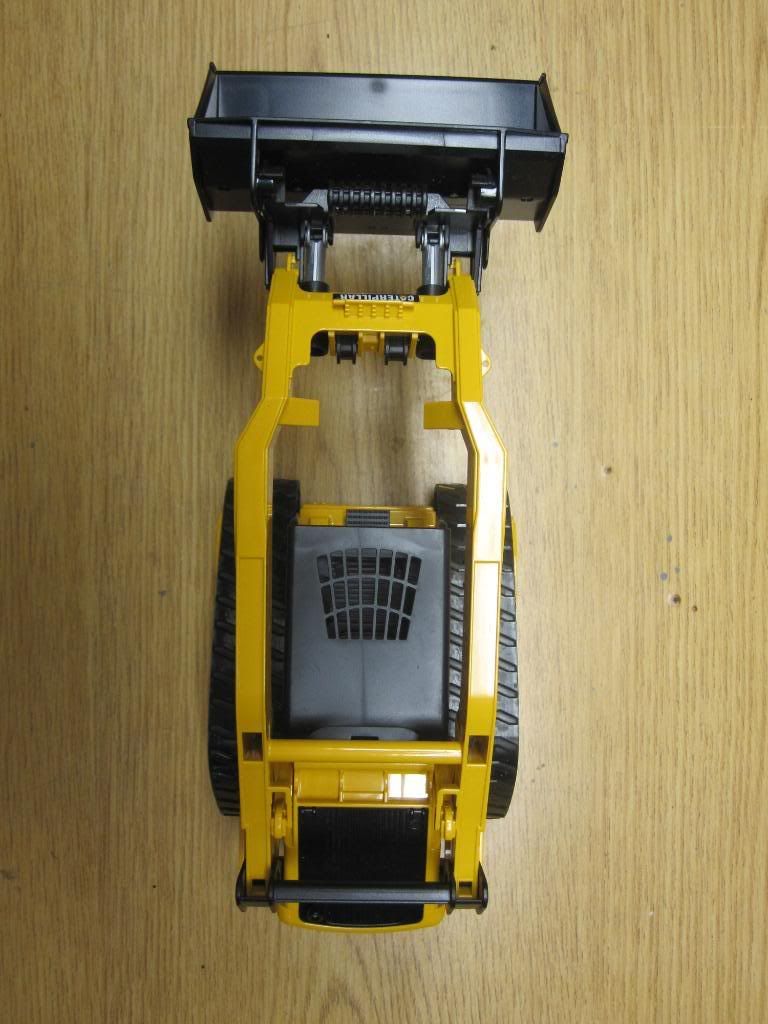

http://i240.photobucket.com/albums/f...4.jpg~original[/QUOTE]


quoted for INFO below here, NOT for images
Since I had to order more parts, I have a more accurate list:

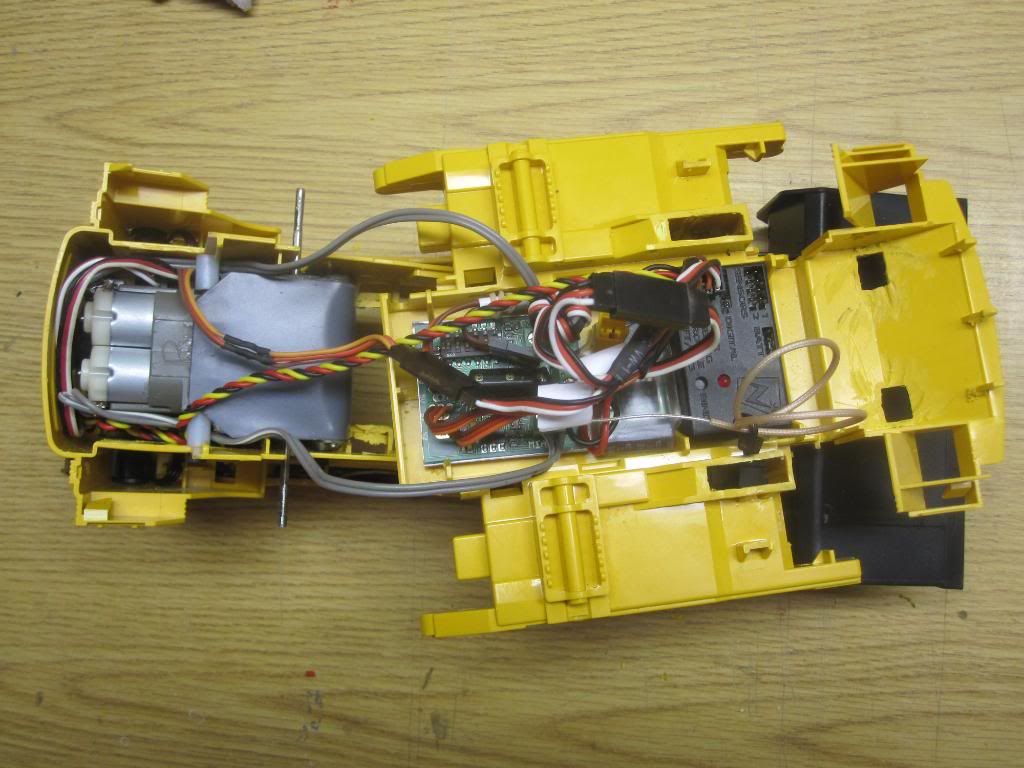

Radio system
Tamiya twin motor gearbox
shims for tamiya gearbox assembly (you loose about 10 to 20% of gear contact on some of them if you leave them sloppy)

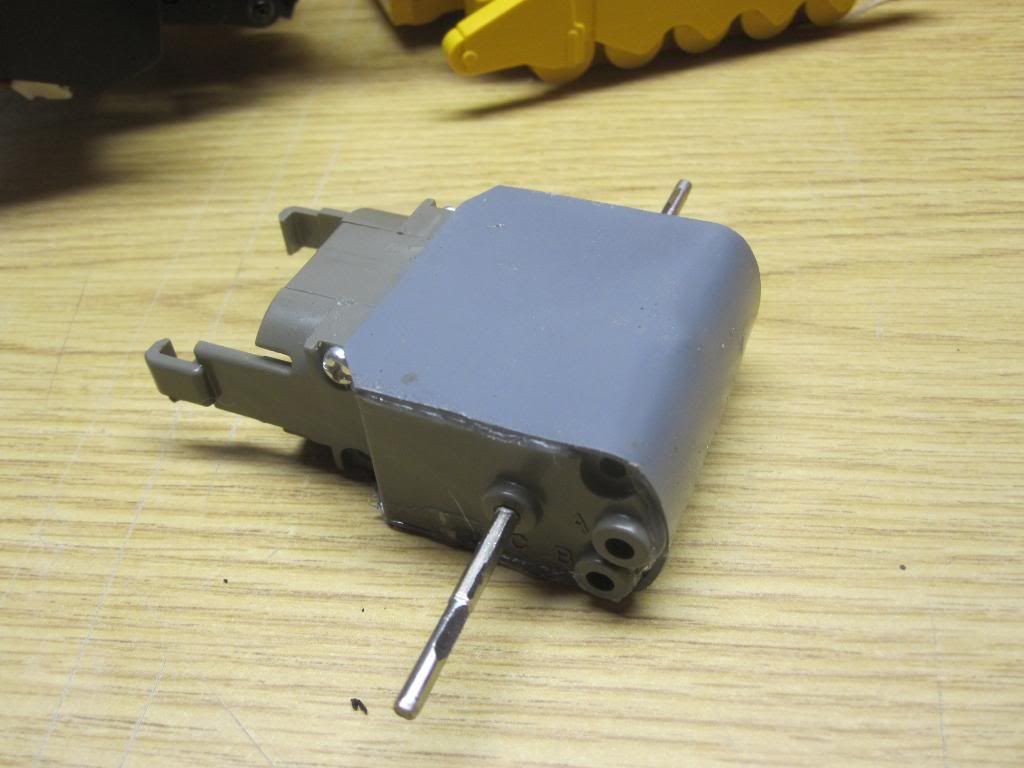

silicone to seal gearbox up (makes it last a very long time)
2 x slotcar motors (tamiya motors are 3.5 volts and fry quickly)
Aluminum stock to make drive hubs
4-40 screws & washers to secure gearbox to chassis
Saber tooth motor controller
5 volt 5 amp (continuous) bec
Hitec Digital HS-7955 TG lift servo
2 x hitec hs-5065mg digital servos for bucket curl
Hitec servo programmer

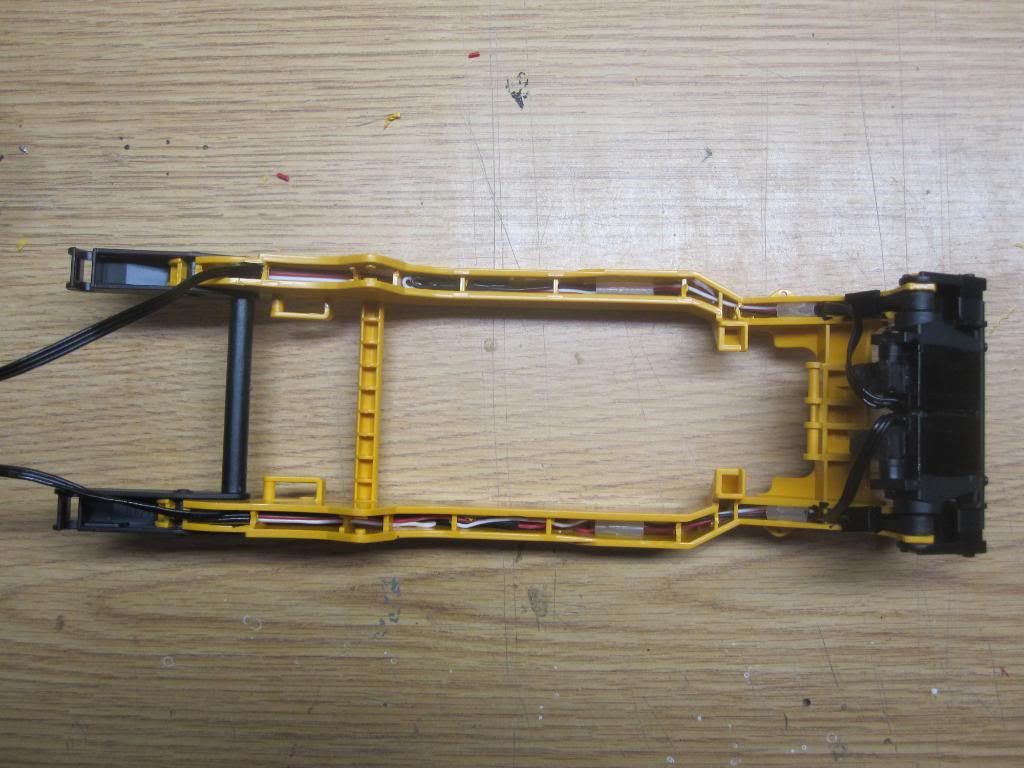

3" Y harness to join the 2 bucket curl servos
2 x 12" male servo leads to extend the bucket curl servos
heat shrink for all of the bucket curl servo wiring
piece of bicycle inner tube for lift lever cover (need to post pics)
4-40 rod and clevis for lift lever
lead weight
and 1 boat load of patience

skeeter 09-24-2017 01:20 AM
Re: testing 1, 2, 3, 4, 5, IDK

http://i240.photobucket.com/albums/f...6.jpg~original[/QUOTE]

~original, it still works/

skeeter 09-24-2017 01:21 AM
Re: testing 1, 2, 3, 4, 5, IDK

i like it
Quote:
Originally Posted by SmallHaul (Post 36495)

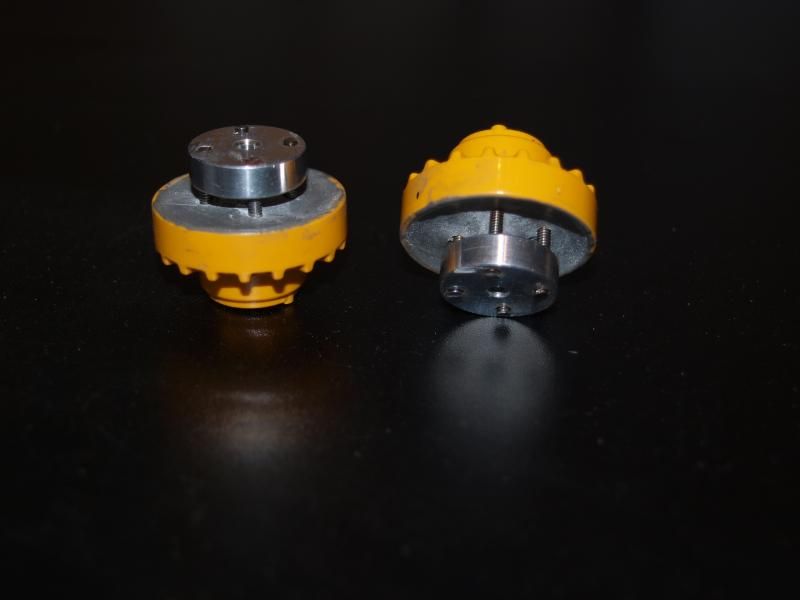

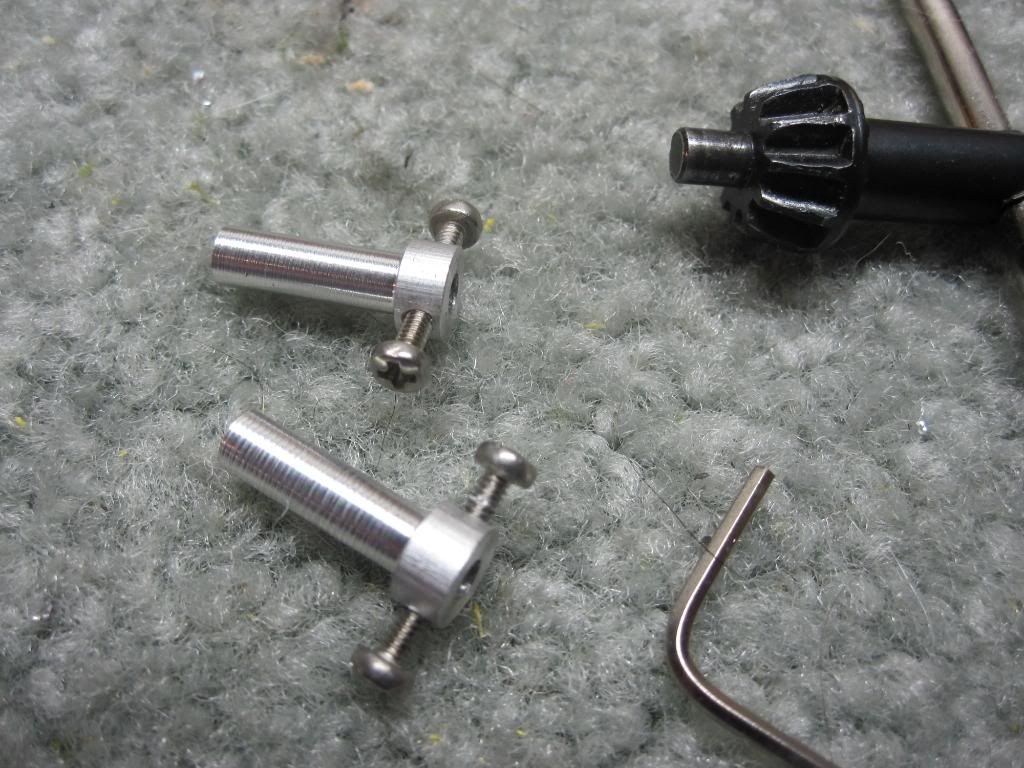

Joe, I can't find any pics of the beefier ones that I make now but, these are my prototype hubs that are on my prototype loader still. Just make the hub larger where the screws are so that you can make the 4-40 screws tight without worrying about striping out the aluminum threads. I also put flat spots on the axle where the screws hit.

http://i240.photobucket.com/albums/f...6.jpg~original

skeeter 09-24-2017 01:27 AM
Re: testing 1, 2, 3, 4, 5, IDK

more
Quote:
Originally Posted by caterpillar (Post 57813)
Hi Joe, picture below. Hope it helps:

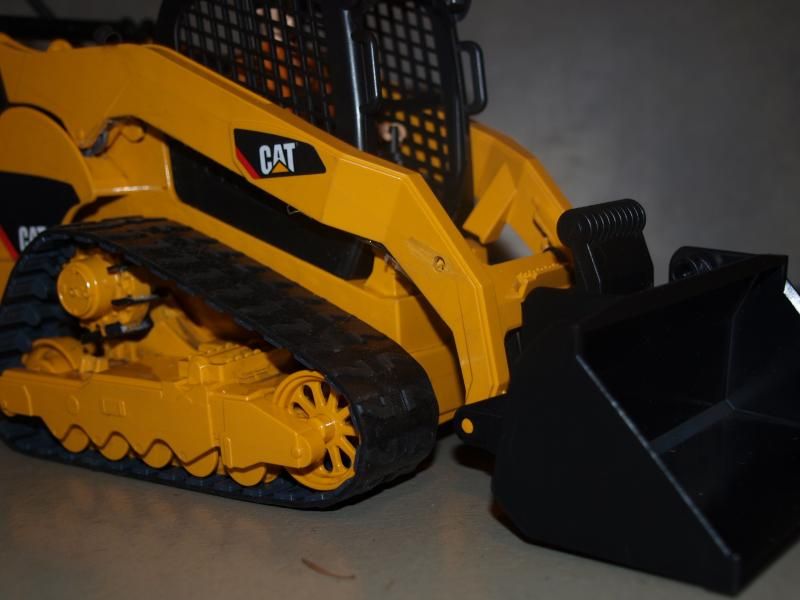

http://i1243.photobucket.com/albums/...6.jpg~original

skeeter 09-24-2017 01:28 AM
Re: testing 1, 2, 3, 4, 5, IDK

more more
Quote:
Originally Posted by caterpillar (Post 58351)
Improvement made on the delta loader

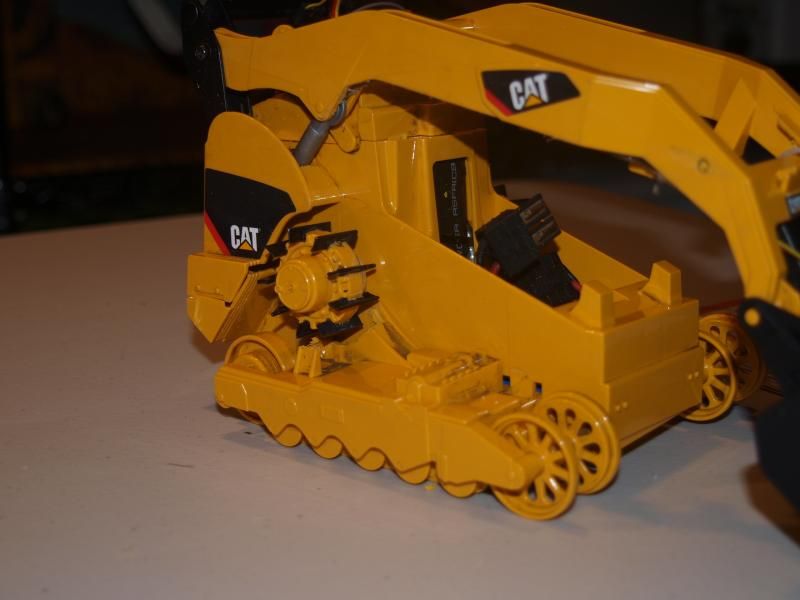

http://i1243.photobucket.com/albums/...c.jpg~original

Planning to sell it

skeeter 09-24-2017 01:36 AM
Re: testing 1, 2, 3, 4, 5, IDK

~original
Quote:
Originally Posted by motocrawler (Post 93553)

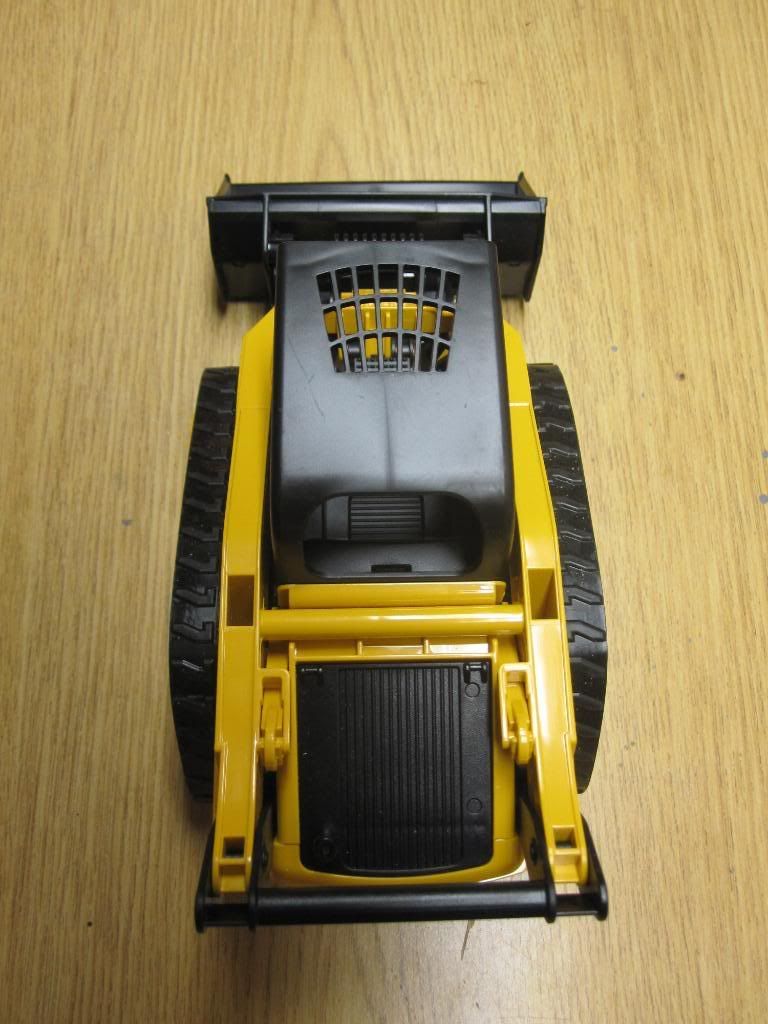

I have been really digging (no pun intended) doing these Bruder conversions, I am so impressed that with a little will and good equipment how functional these models can become. This time around I am doing a skid steer conversion...this was probably the hardest conversion I have done to date, mainly because of the size constraint of the model.

Step 1:

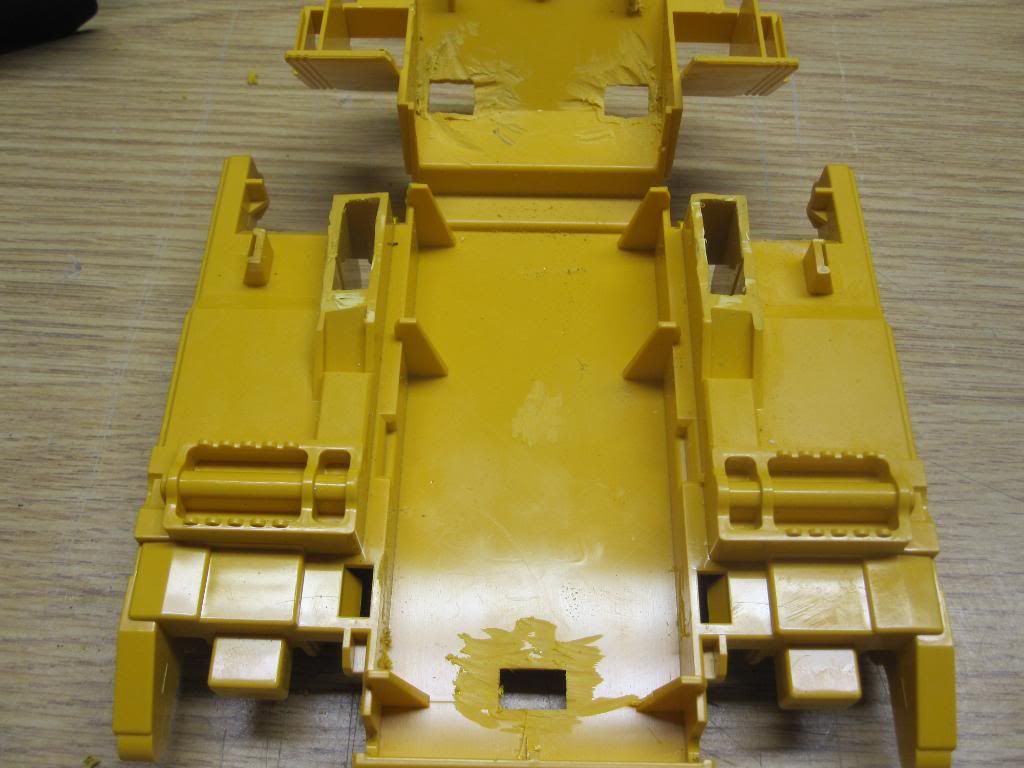

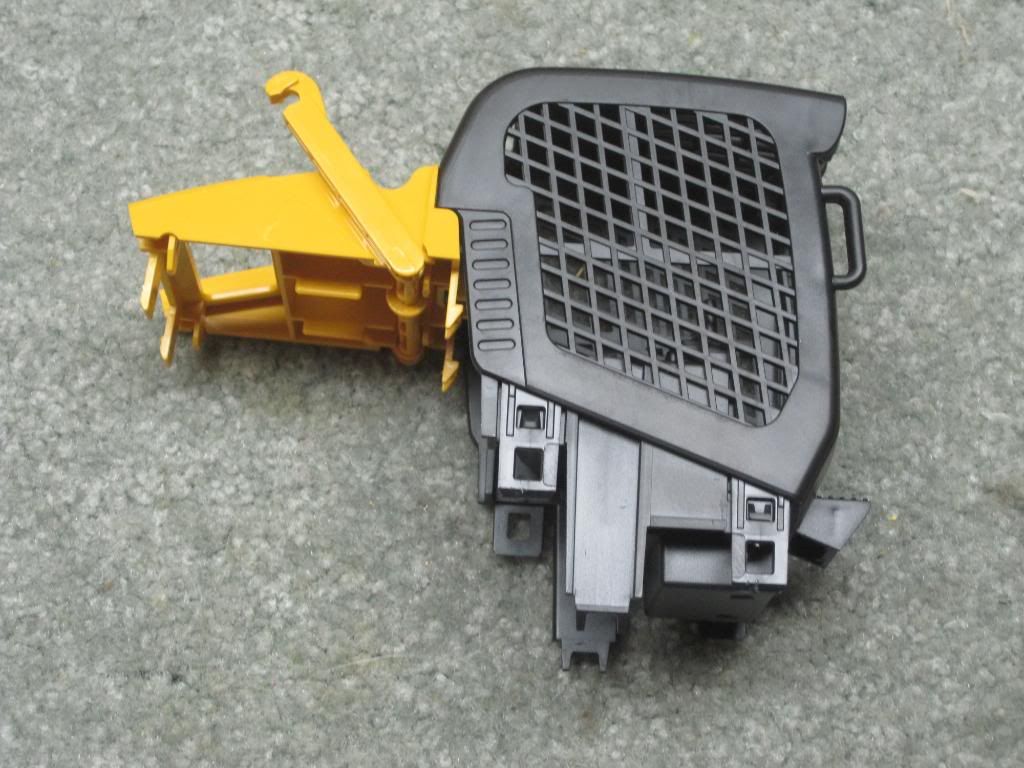

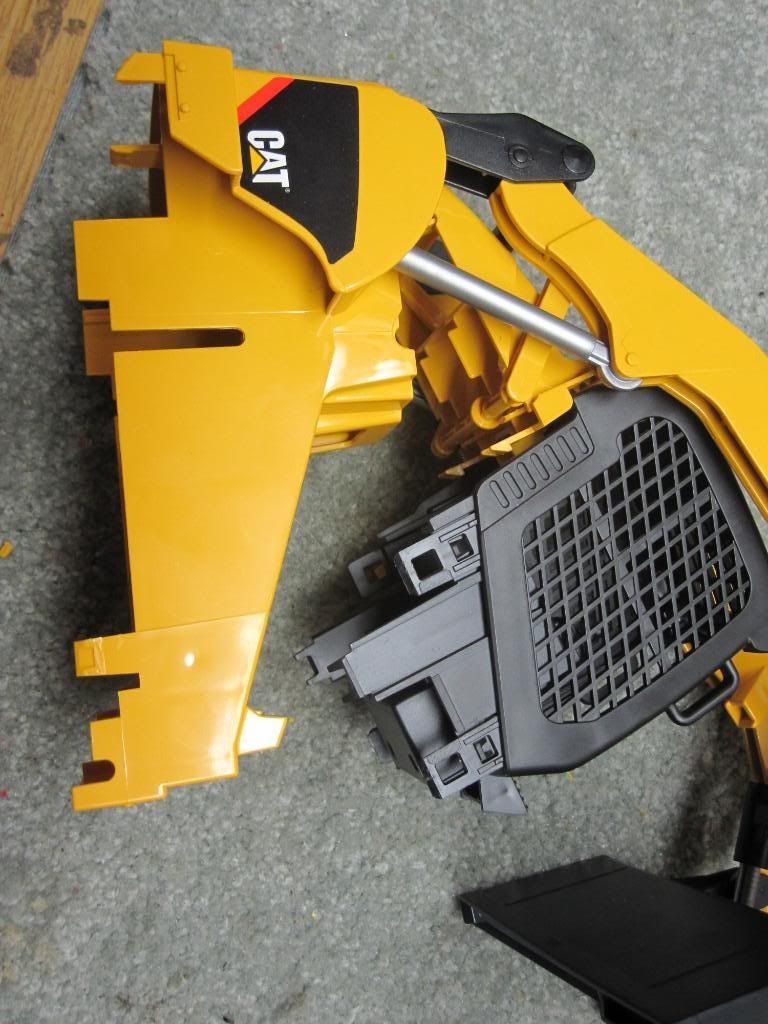

Cut out the back area for the the boom lift servo:

http://i1260.photobucket.com/albums/...8.jpg~original

http://i1260.photobucket.com/albums/...5.jpg~original

Step 2:
Make the bucket curl automation, this proved to be extremely difficult because of the various pivot points and size constraint. It was very hard to get a position where the bucket would curl all the way down and up:

http://i1260.photobucket.com/albums/...1.jpg~original

http://i1260.photobucket.com/albums/...9.jpg~original

skeeter 09-24-2017 01:39 AM
Re: testing 1, 2, 3, 4, 5, IDK

~original

Quote:
Originally Posted by motocrawler (Post 93554)

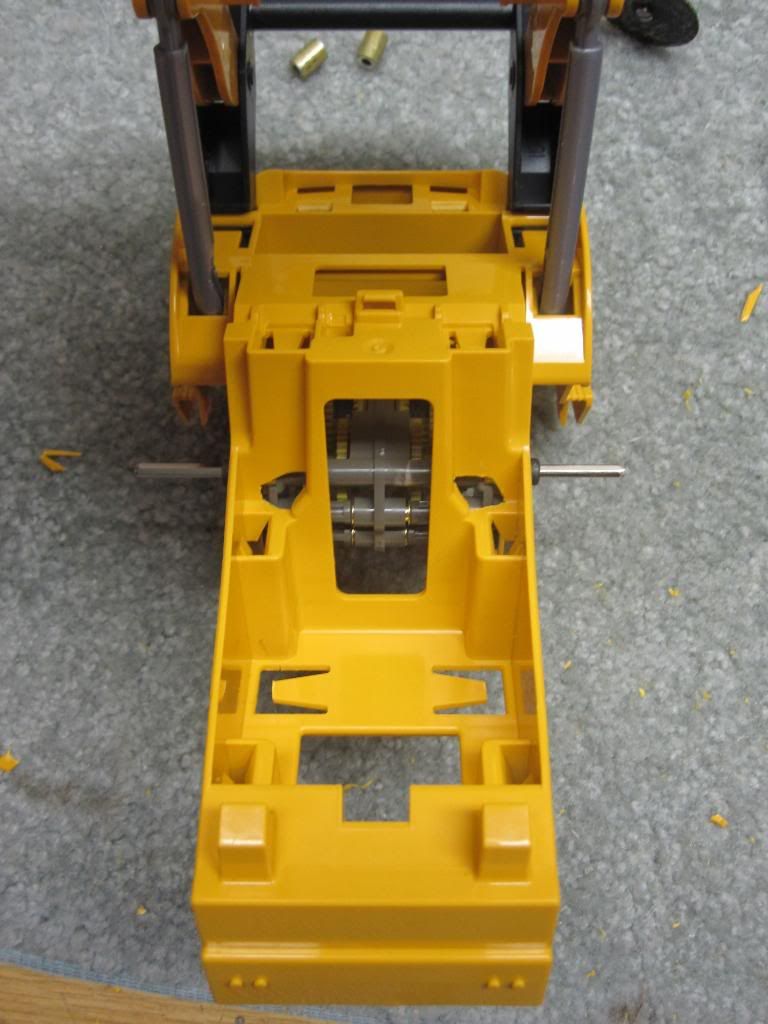

From there I went to work on the propulsion system. I used 298:1 geared motors soldered to the circuit board of a hi-tec continuous rotation servo. I then used a v-tail mixer from rc planes to be able to mix the motors in order to have a tank drive system.

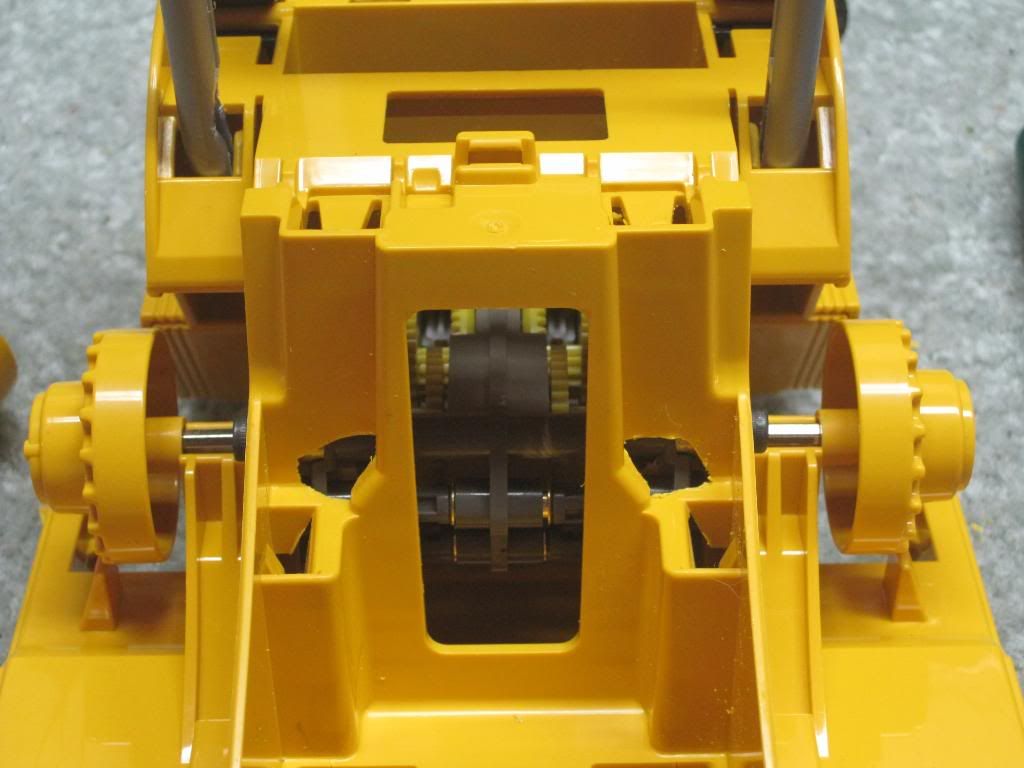

http://i1260.photobucket.com/albums/...1.jpg~original

http://i1260.photobucket.com/albums/...5.jpg~original

http://i1260.photobucket.com/albums/...8.jpg~original

I attached the drive wheels by use of a aluminum hub, I first filled the wheel with JB Weld so I had a way of mounting the hub.

http://i1260.photobucket.com/albums/...8.jpg~original

From there I made the sprockets using zip ties-this method has been documented and used on several other conversions online (credit to smallhaul for this).

http://i1260.photobucket.com/albums/...8.jpg~original

http://i1260.photobucket.com/albums/...9.jpg~original

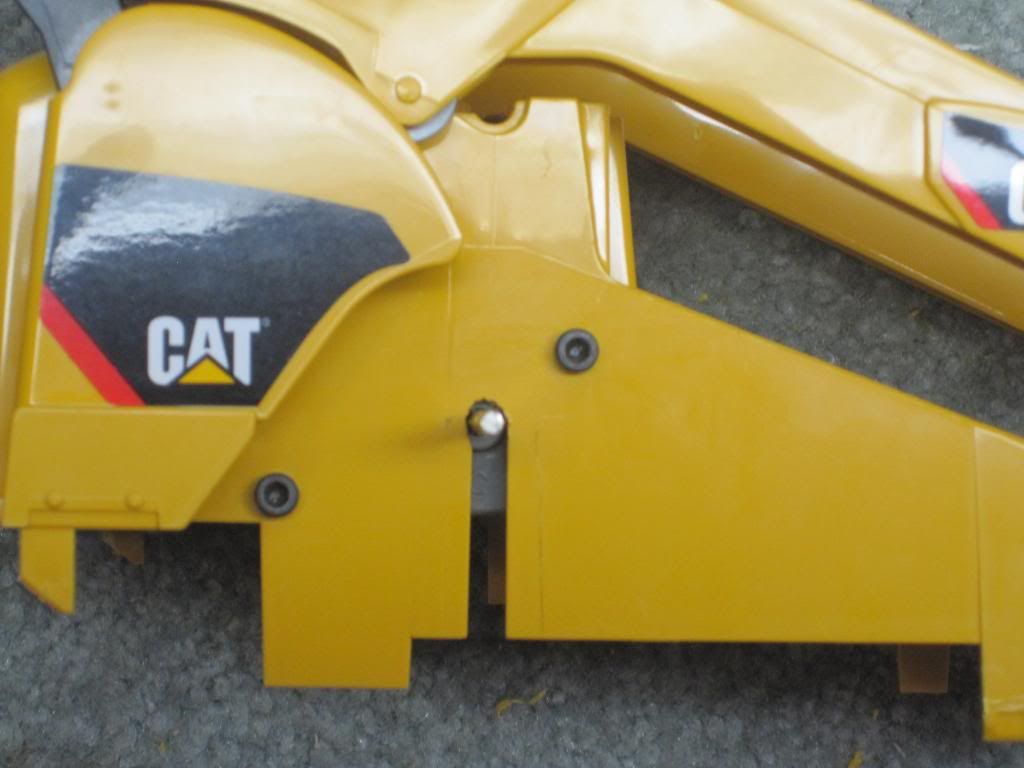

http://i1260.photobucket.com/albums/...0.jpg~original

skeeter 09-24-2017 01:42 AM
Re: testing 1, 2, 3, 4, 5, IDK

~original
MORE pics I wish to see, that Photobutt is holding ransom

Quote:
Originally Posted by motocrawler (Post 93555)
Here are some final finished pictures and a video will come shortly. So impressed with how steep an angle it can climb. A few things I need to change to are: a more powerful lift boom servo and change the existing ESC to a castle creations 6V BEC so I can get max rpm from the gear motors and max torque from the servos. But beyond that it is highly functioning and so much fun to operate!

http://i1260.photobucket.com/albums/...2.jpg~original

http://i1260.photobucket.com/albums/...3.jpg~original

skeeter 09-24-2017 01:50 AM
Re: testing 1, 2, 3, 4, 5, IDK

~original

YEP, MORE MOre More

Quote:

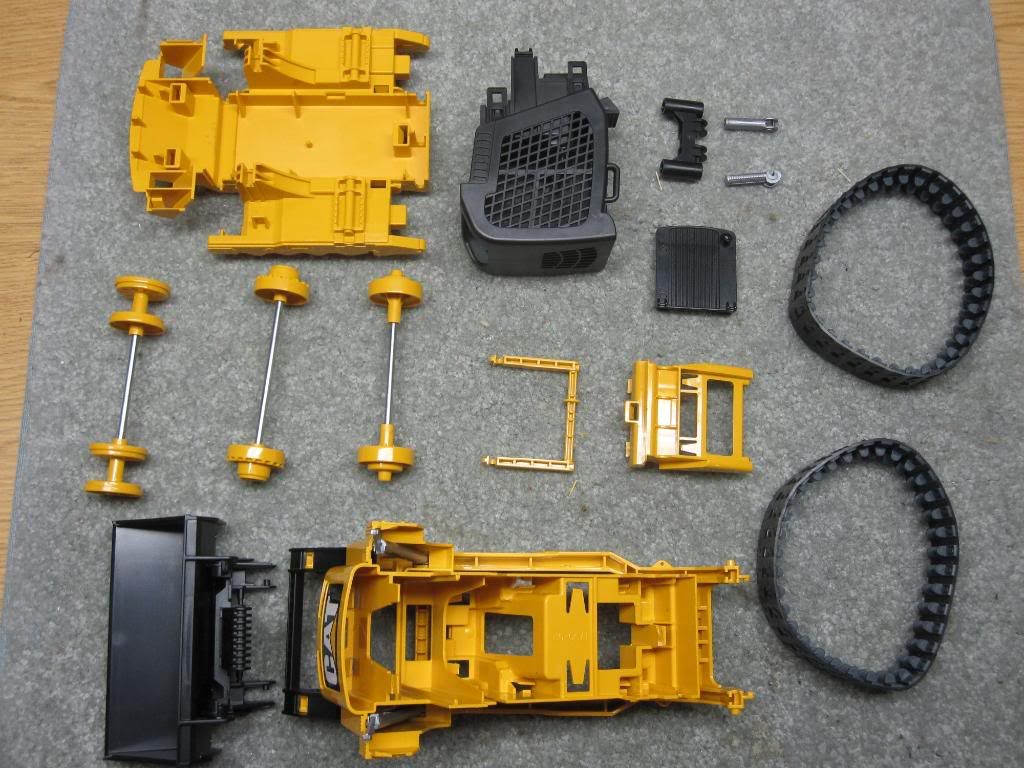

Originally Posted by A.ash (Post 97731)

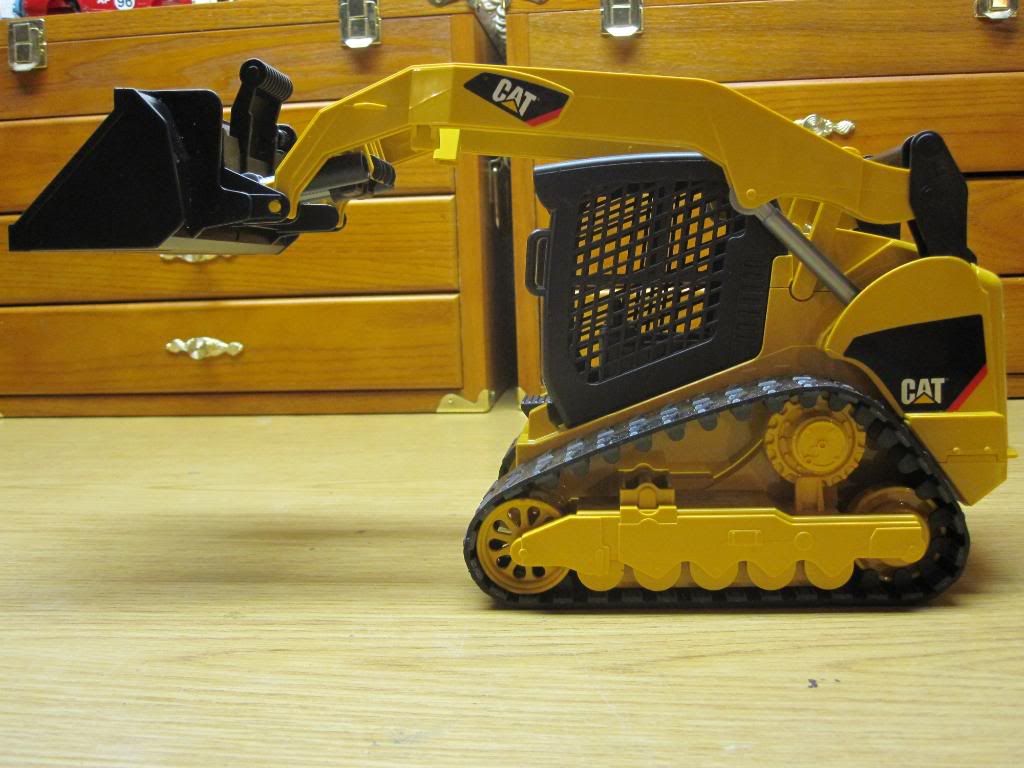

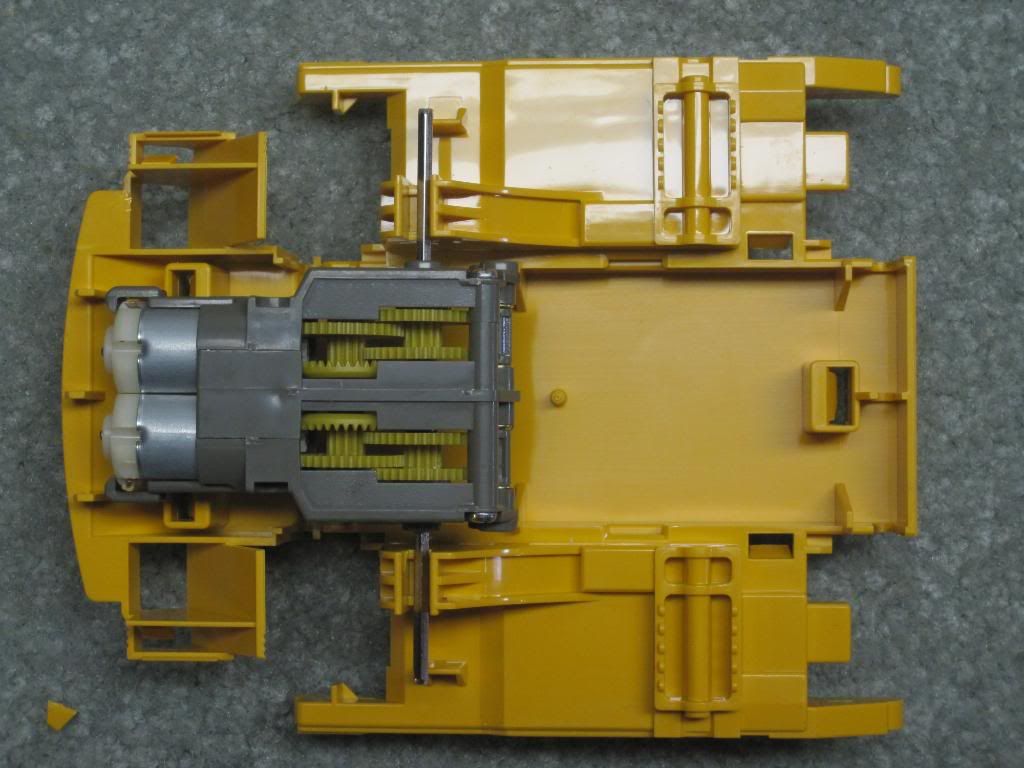

Gear box dirt protection
http://i886.photobucket.com/albums/a...8.jpg~original

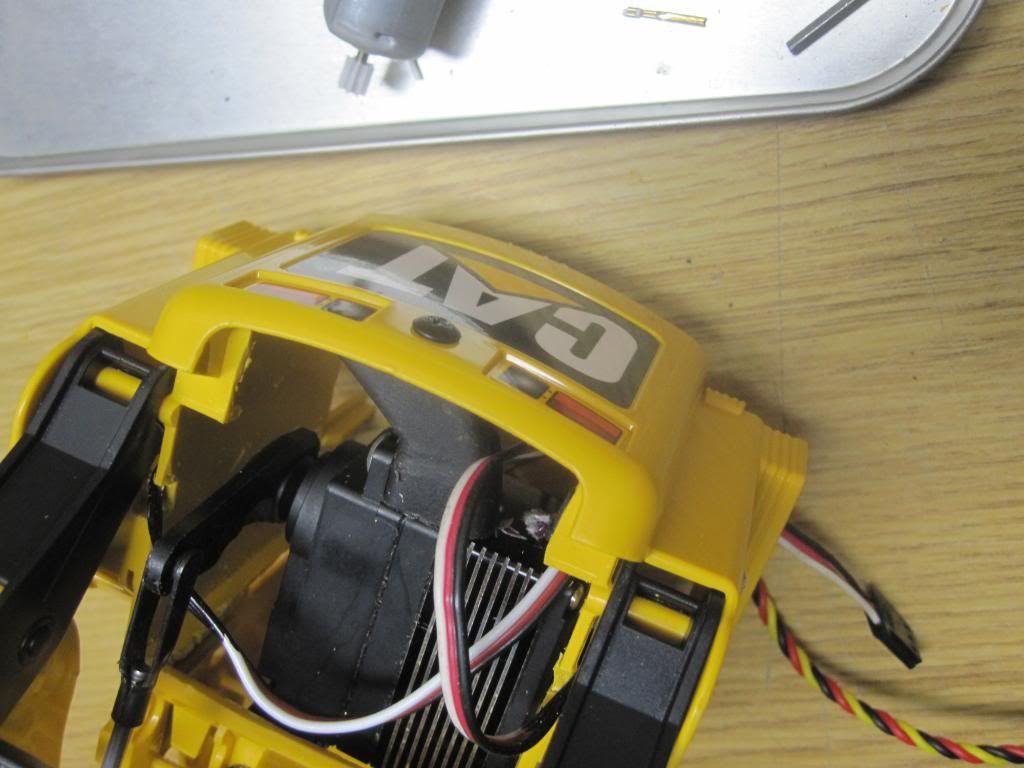

Lift servo installed (bottom view)

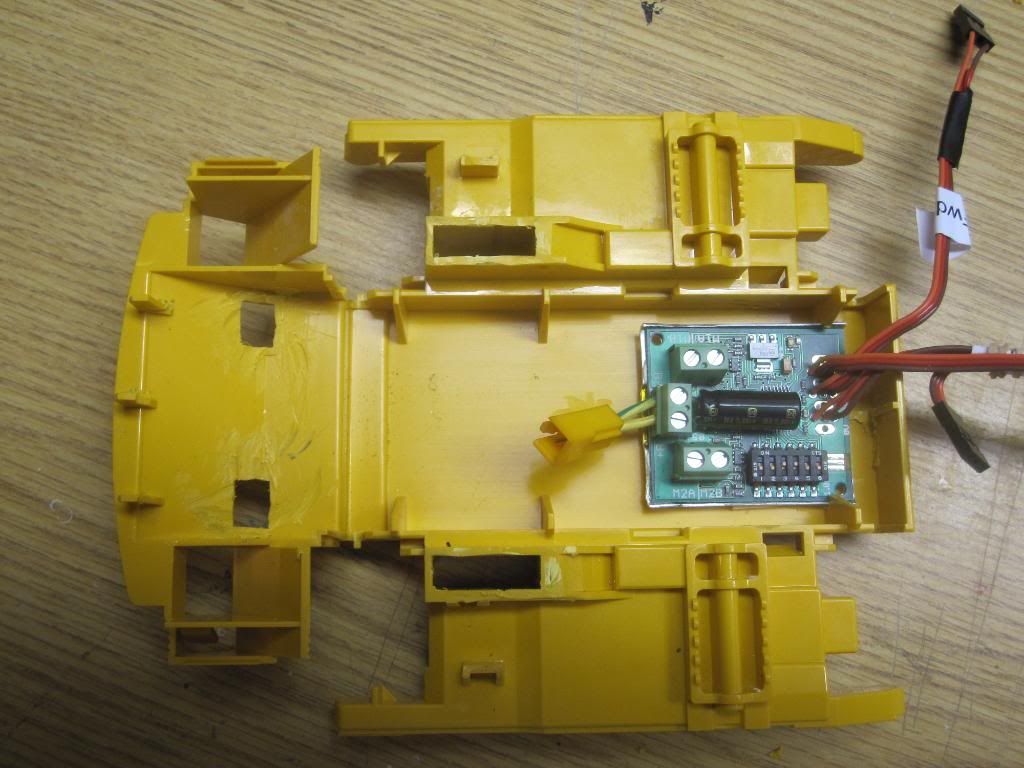

http://i886.photobucket.com/albums/a...0.jpg~original

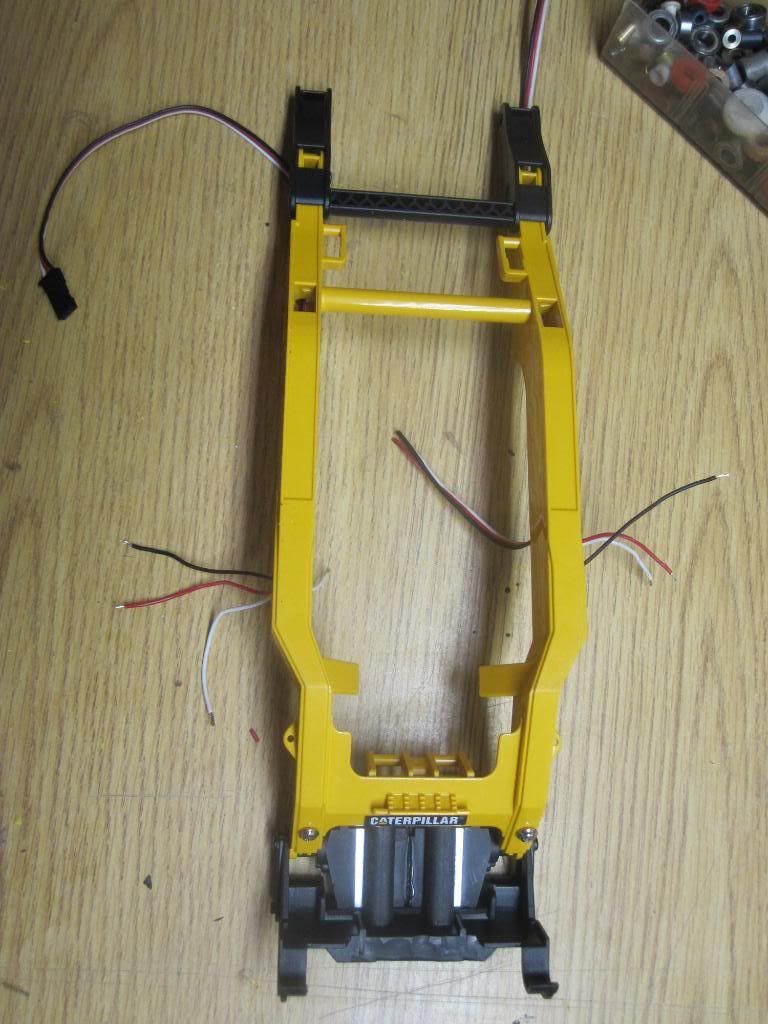

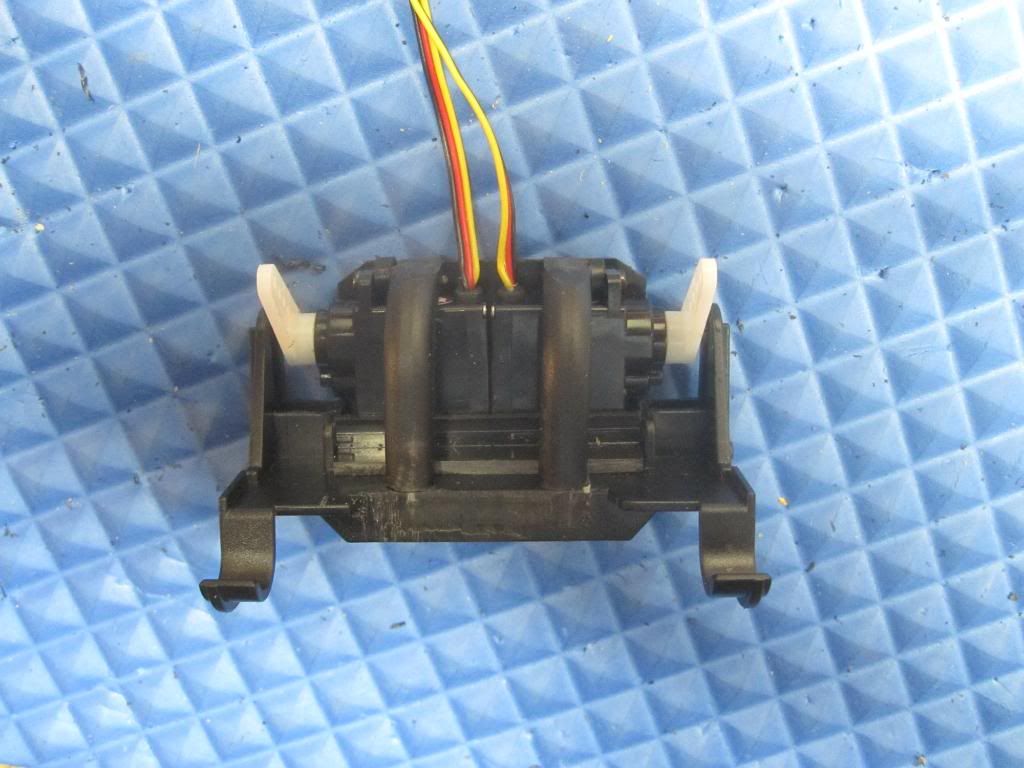

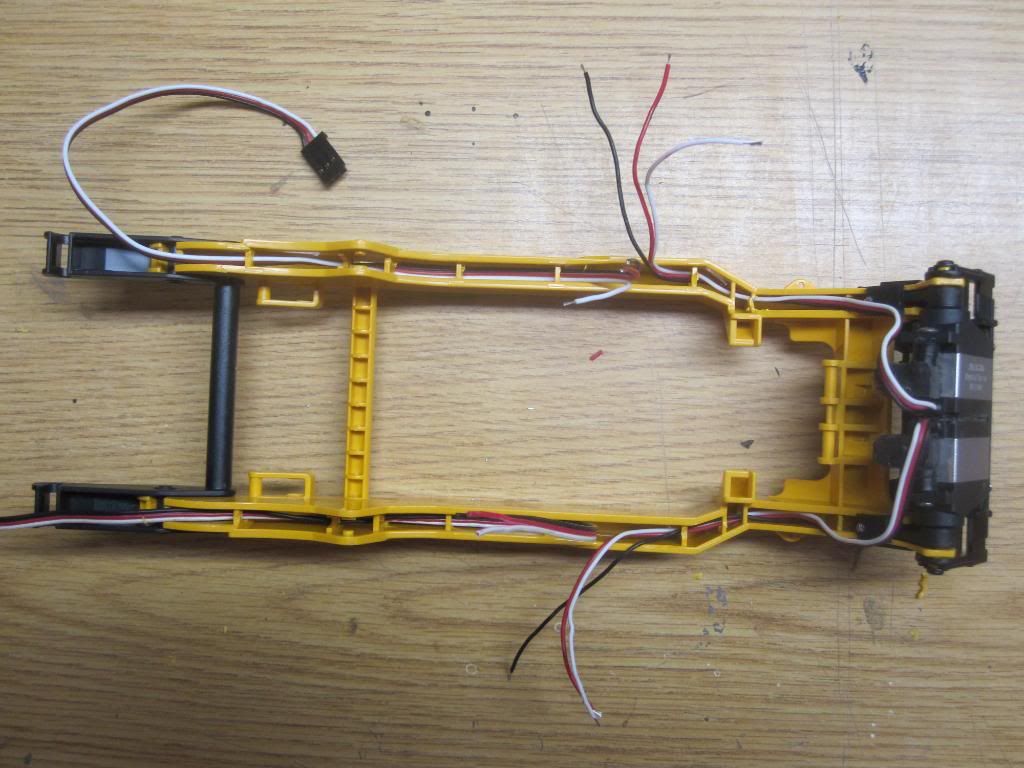

Curl servos mount build and installed
http://i886.photobucket.com/albums/a...d.jpg~original

Electronics (minus Rx) and lead ballast installed
http://i886.photobucket.com/albums/a...8.jpg~original

More to come
